Plockmatic BM3050 system 27 August 2019 1. Installation Procedure
1-39

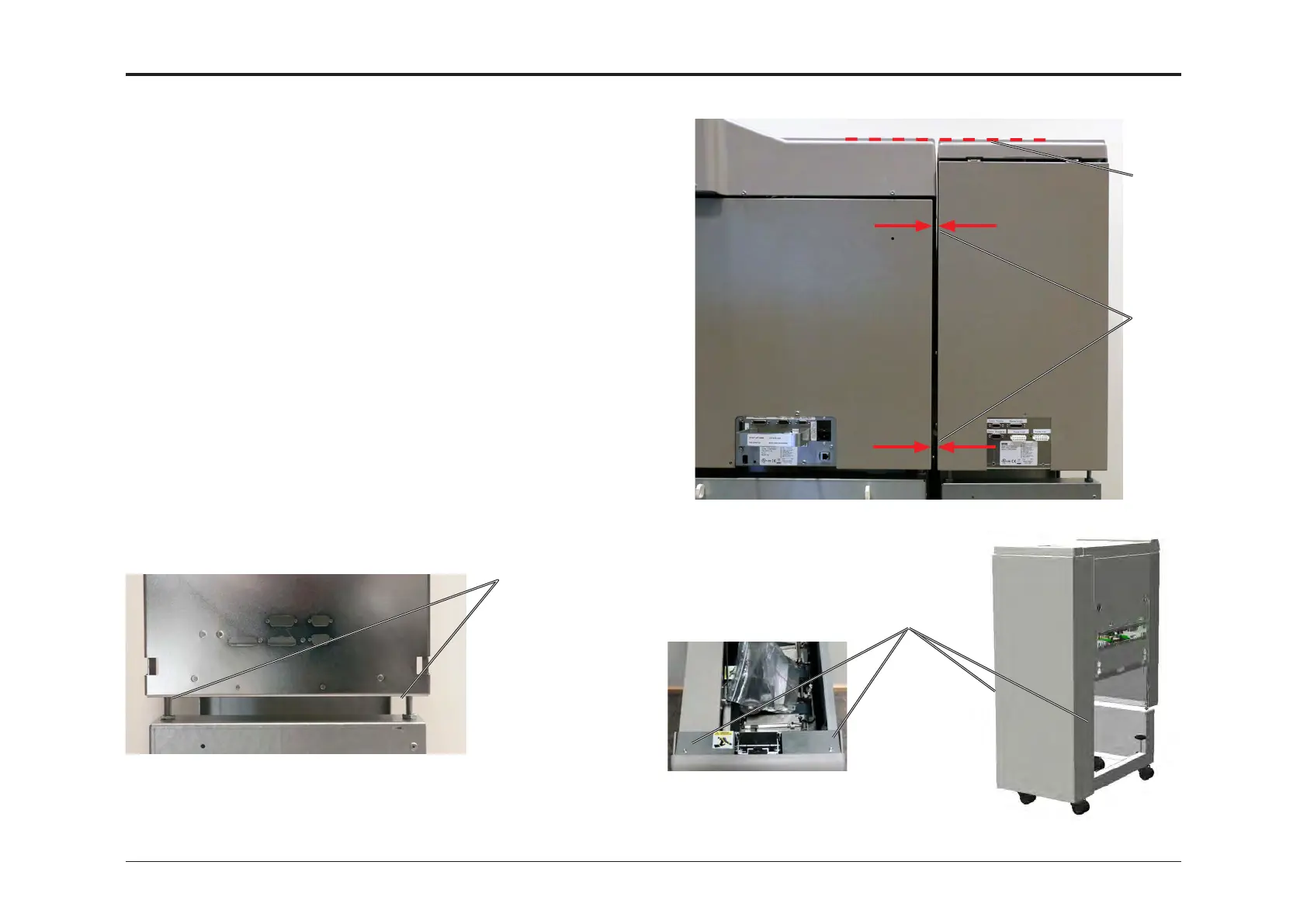

5. Roll the SquareFolder up to the Booklet Maker.
Purpose is to check alignment top to bottom and height adjustment.
Alignment is correct when the distance between the Booklet Maker
and the SquareFolder is equal top to bottom [C].
Height adjustment is correct when the top surface of the
Square Folder front cover is at the same height as the
top surface ot the Booklet Maker front cover [D].
If adjustment is necessary, begin with adjusting alignment and con-
tinue with adjusting height.
6. Remove four screws [F] and remove the front cover.
7. Adjust the height of the SquareFolder by turning the four nuts [G].
Two on the front side and two on the back side.
Adjust alignment by turning only two of the nuts on either the infeed or
exit side.
NOTE:
Do not turn each nut more than 2 full revolutions before adjusting the other
nuts.
Each turn of a nut equals to a 1,5 mm (1/16”) travel.
[C]
[D]
[F]
[G]
Continued on next page
