Plockmatic BM500 - REP 11.11 SQF-M4 Roll Motor, SQF-Q2 (M4) Right Sensor & SQF-Q3 (M4) Left Sensor; REP 11.12 SQF-Q4 Clamp Motor (M3) Encoder

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-107
REP 11.11 SQF-M4 Roll Motor,
SQF-Q2 (M4) Right sensor & SQF-Q3 (M4) Left Sensor
Parts List on PL 10.5
Removal
1. Turn off the main power and disconnect the power cord.
2. Remove Upper Exit Cover (REP 11.2 Exit Cover Assembly).
3. Manually move the M4 motor [A] towards the center.
4. Disconnect connector to sensor SQF-Q2 / SQF-Q3 .
5. Remove screw [B] (x1).
Replacement
1. Reverse removal procedure.
REP 11.12 SQF-Q4 Clamp Motor (M3) Encoder
Replacement
1. Reverse removal procedure.
Parts List on PL 10.5
Removal
1. Turn off the main power and disconnect the power cord.
2. Remove Exit Cover (REP 11.2 Exit Cover Assembly).
3. Disconnect connector [A] (x1).
4. Remove screw [B] (x1).

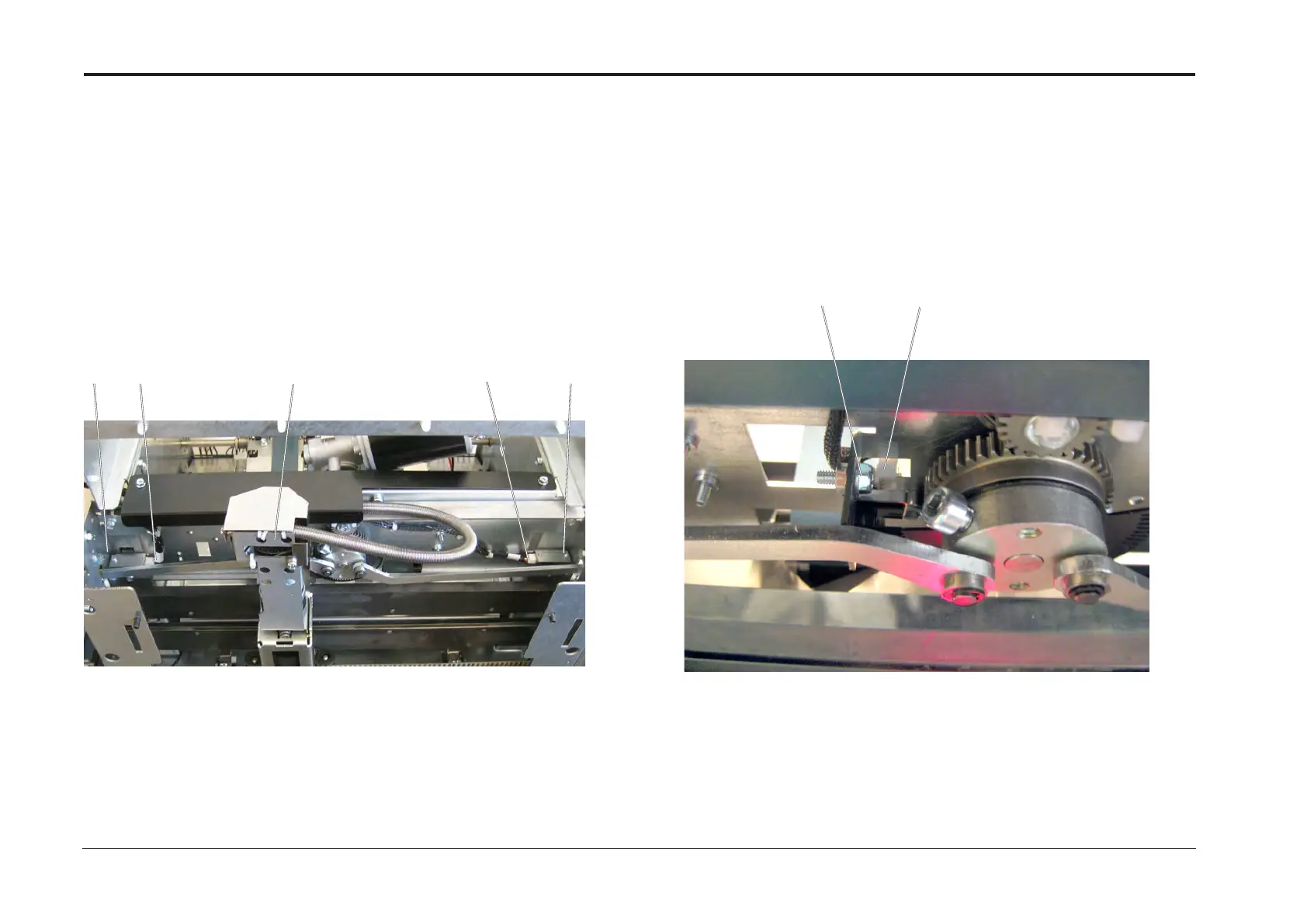

[A] [B]Sensor Q2 Sensor Q3
[B]
[B]
[A]
