Plockmatic BM500 - REP 15.34 Baffle Hardware

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-259

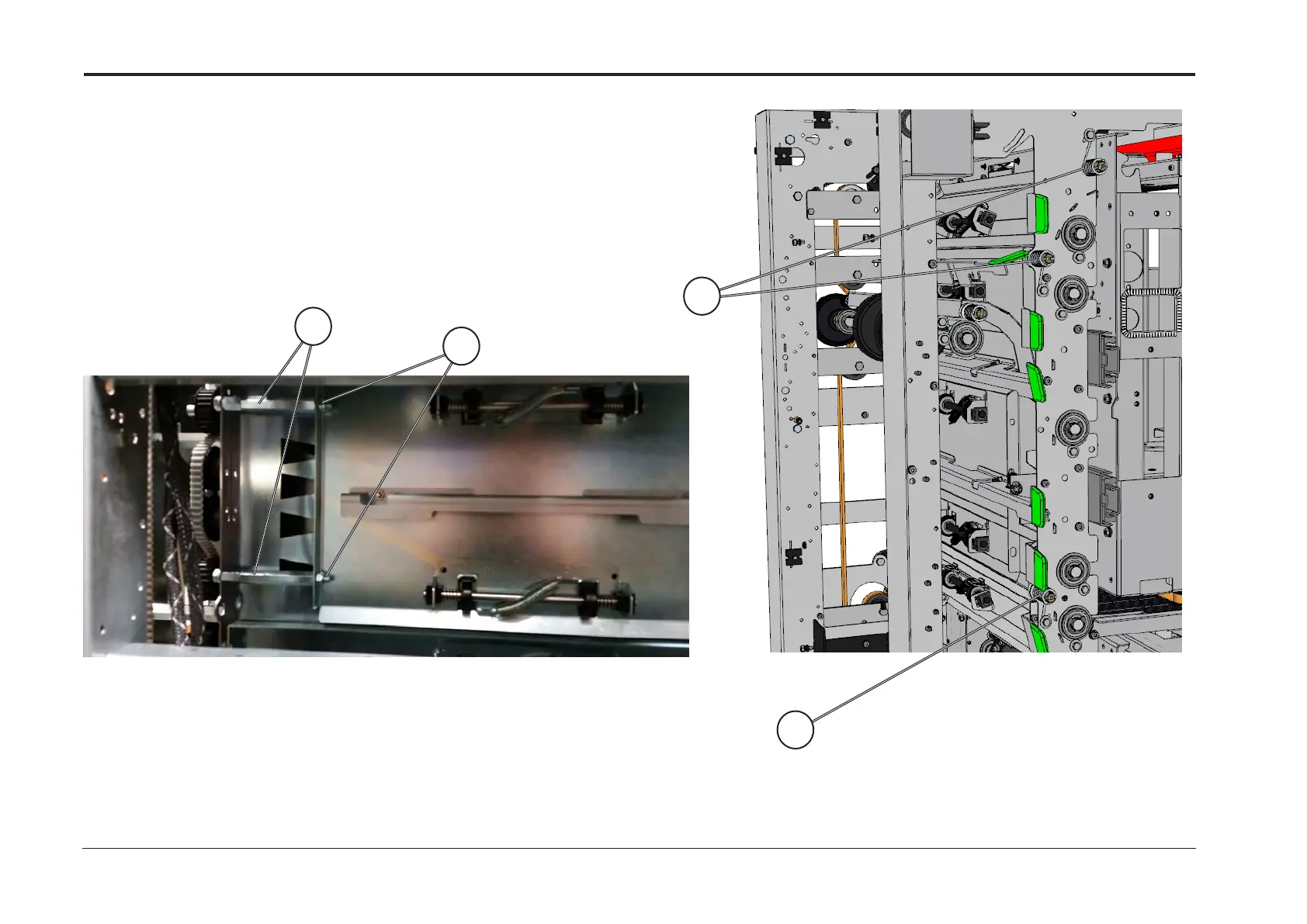

If bafes require adjustment, refer to this section for critical hardware
details.
-Lower Bafe Tension Spring [A] requires 180-270 degrees pre-tension
-Other Bafe Tension Springs [B] require 70-120 degrees pre-tension
-Leave a 1-2mm gap between locking nut [C] and standoff [D] to allow
for middle bafe to rotate freely
B
A
C
D
REP 15.34 Bafe Hardware
