Plockmatic BM500 - REP 6.7 Lower Fold Rollers

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-53
Parts List on PL 6.1

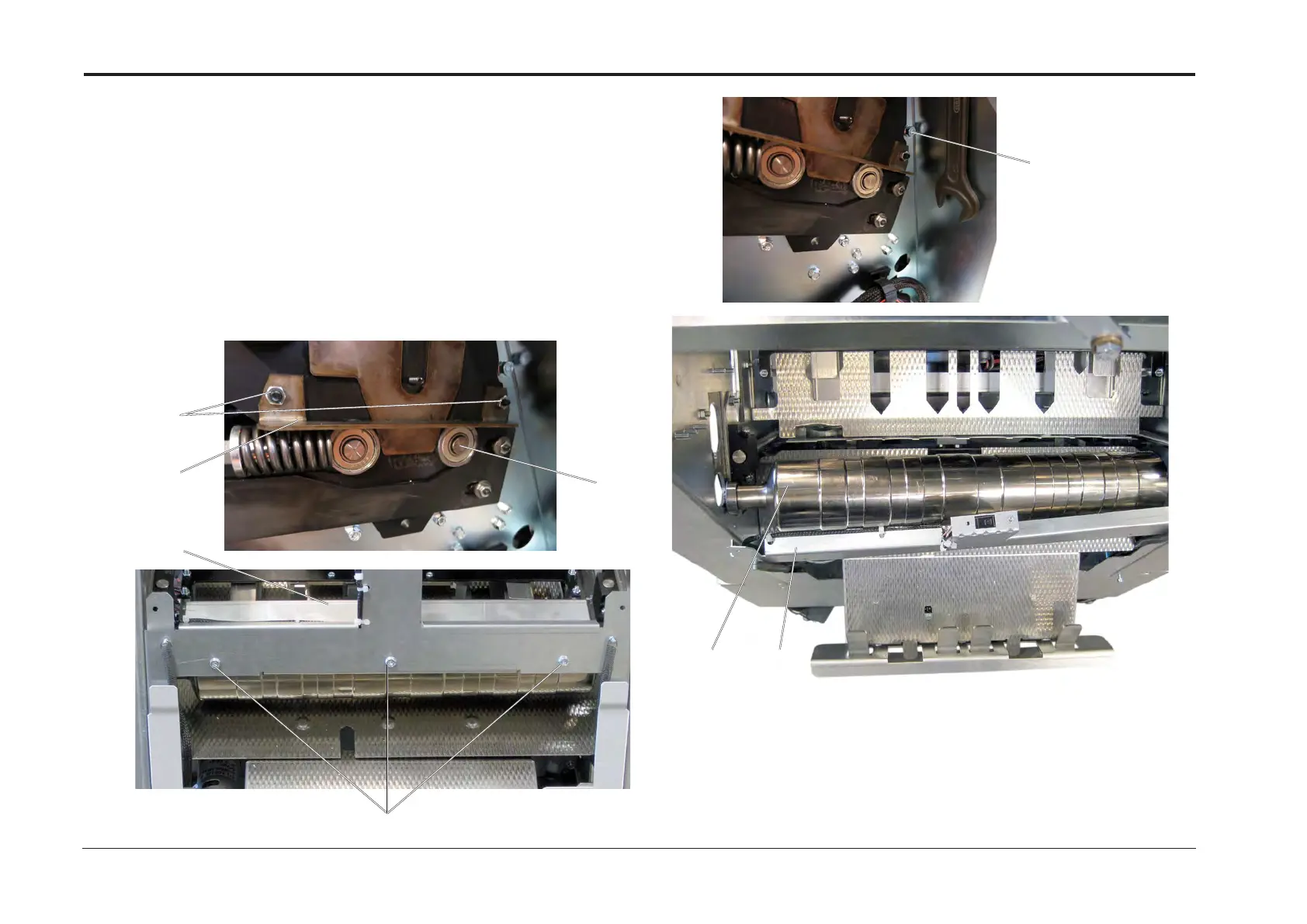

Removal
1. Remove Upper fold rollers (REP 6.6 Upper Fold Rollers).
2. Remove nuts (x2) [A] and the bearing support [B].
3. Remove lower fold roller (1 of 2) [C].
4. Remove screws (x3) [D] and the paper guide [E].
5. Remove lower exit cover (REP 1.3 Upper and Lower Exit Cover).
6. Remove screw (x1) [F] and tilt out the frame [G].
7. Remove the lower fold roller (2 of 2) [H].
REP 6.7 Lower Fold Rollers
Replacement
1. Reverse the removal procedure.
NOTE:
Make sure to lubricate, with Molybdenum grease.
PerformADJ 6.7 Lower Fold Roller.
[A]
[C]
[B]
[D]
[E]
[F]
[G][H]
