GP 32 4IN 4OUT PCB ”J” LEDs
Purpose
Provides an explanation of the LED indications on the PCB.
D1

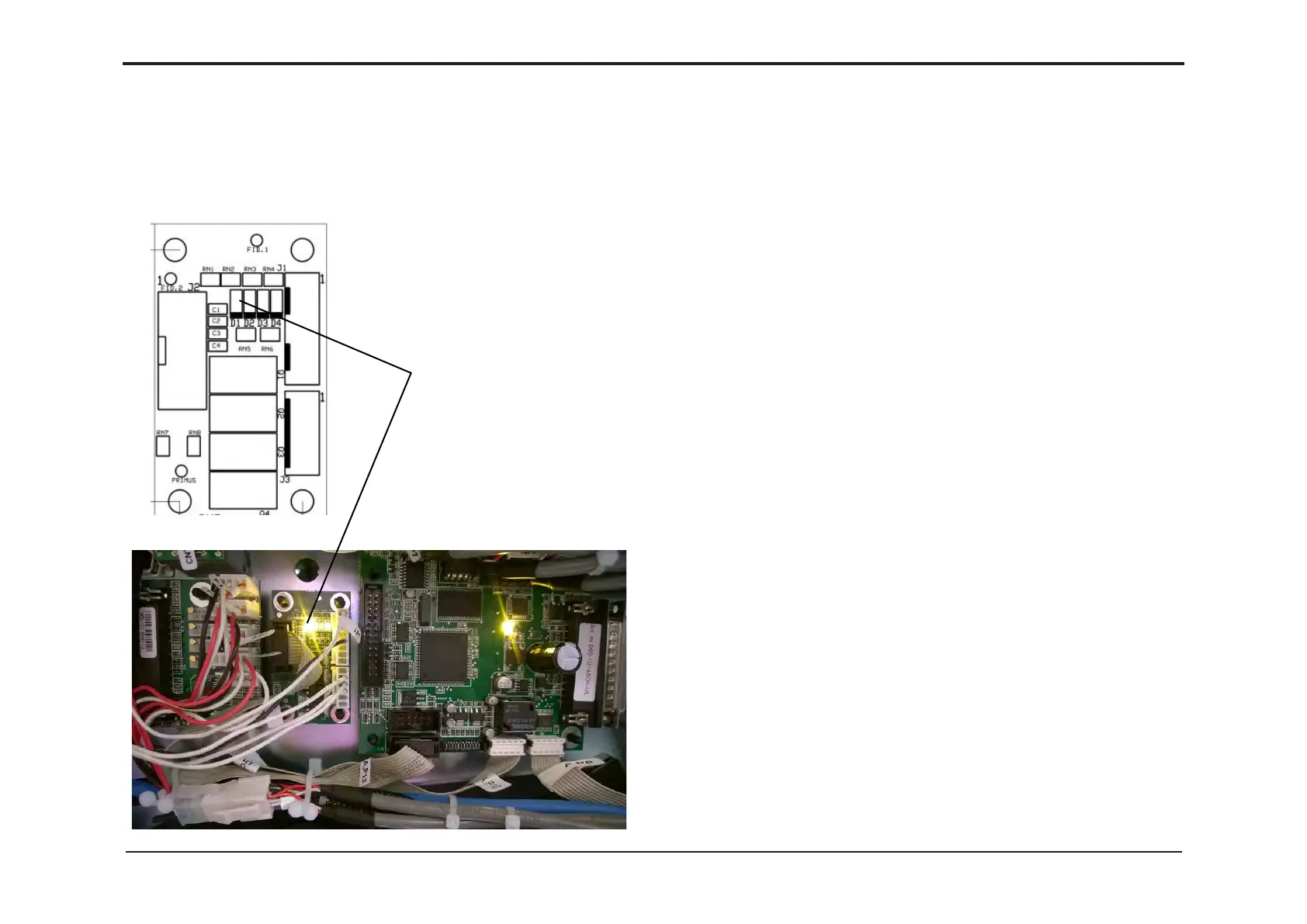

D1 = Yellow LED Lit when
Interlockswitch SW1(SW17 Soft Signal)
activated.
