Plockmatic BM500 - REP 14.4 Cover, Upper Exit; REP 14.5 Cover, Top

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-210

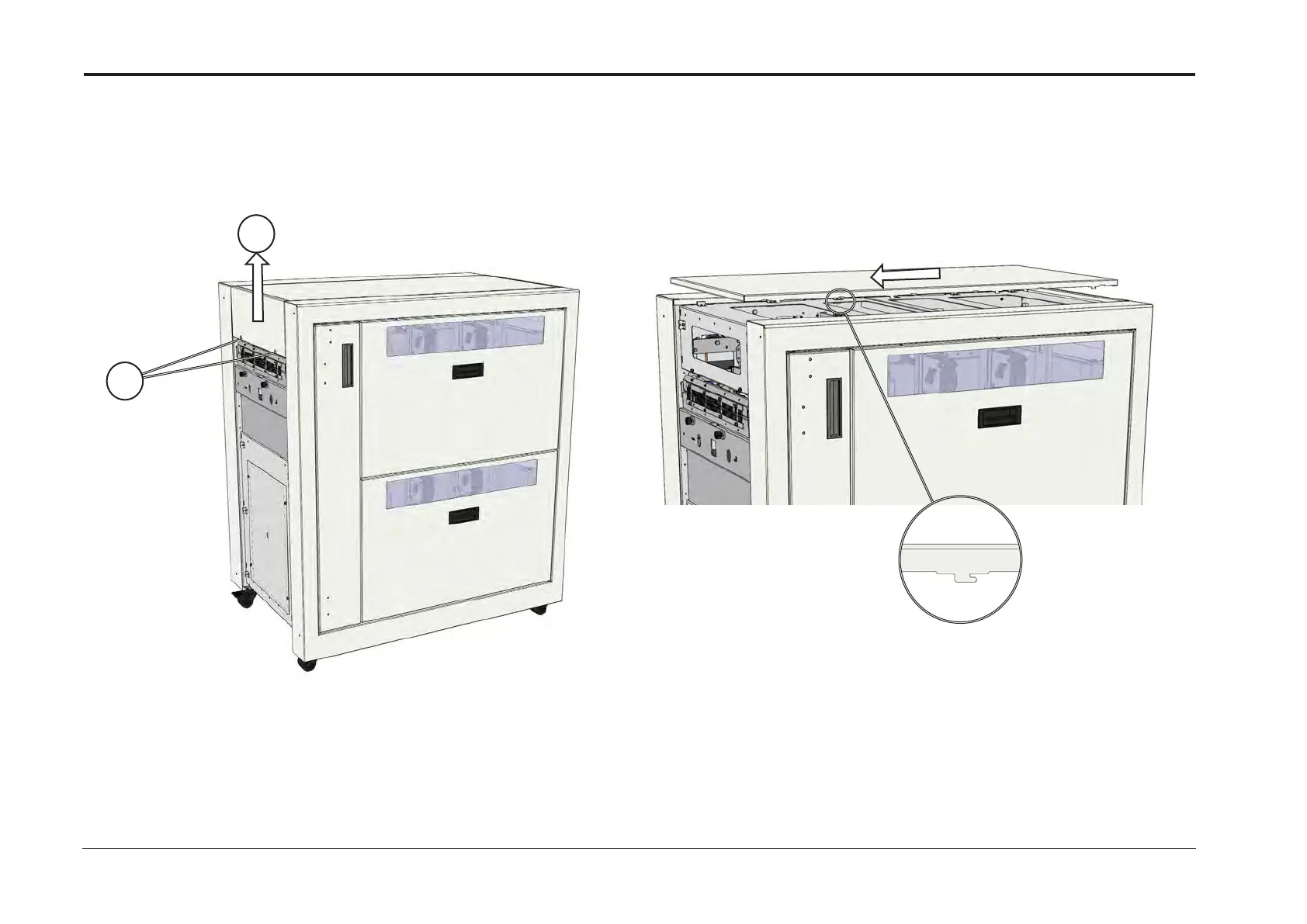

1. Loosen screw [A] (x2)
2. Slide cover [B] upwards
A
B
1. Remove Cover, Upper Exit (REP 14.4)
2. Press Cover, Top in arrow direction and remove
Replacement
Reverse removal procedure
Replacement
Reverse removal procedure
(AF602 Spare Parts Manual, PL1.0 Item 9) (AF602 Spare Parts Manual, PL1.0 Item 11)
REP 14.4 Cover, Upper Exit REP 14.5 Cover, Top
