Plockmatic BM500 - REP 6.2 Fold Stop Gate

Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-46
Parts List on PL 6.2
Removal
1. Set the machine up for 12 x 18”.
2. Turn off the main power and disconnect the power cord.
3. If system is equipped with a TR, undock it (REP 1.0 Undocking BM / TR / SQF).
4. Remove nuts (x2) and washers (x2) [A].
5. Remove Paper guide [B].
6. Remove screws (x2), bushing (x2), nuts (x2) [C] on both sides.
7. Remove Stop gate [D].
REP 6.2 Fold Stop Gate
Replacement
NOTE:
Make sure that the shaft on the Fold stop gate, is positioned in the linkage.
1. Reverse removal procedure.
2. Place a ruler as in gure above.
3. Ensure that the stop gate is parallel with the ruler (i.e the curvature of the gate is zero)
or slightly concave with a maximum curvature less or equal +0.2mm.
The curve should never be convex, i.e. the curvature of the gate should never be less
than zero (negative).

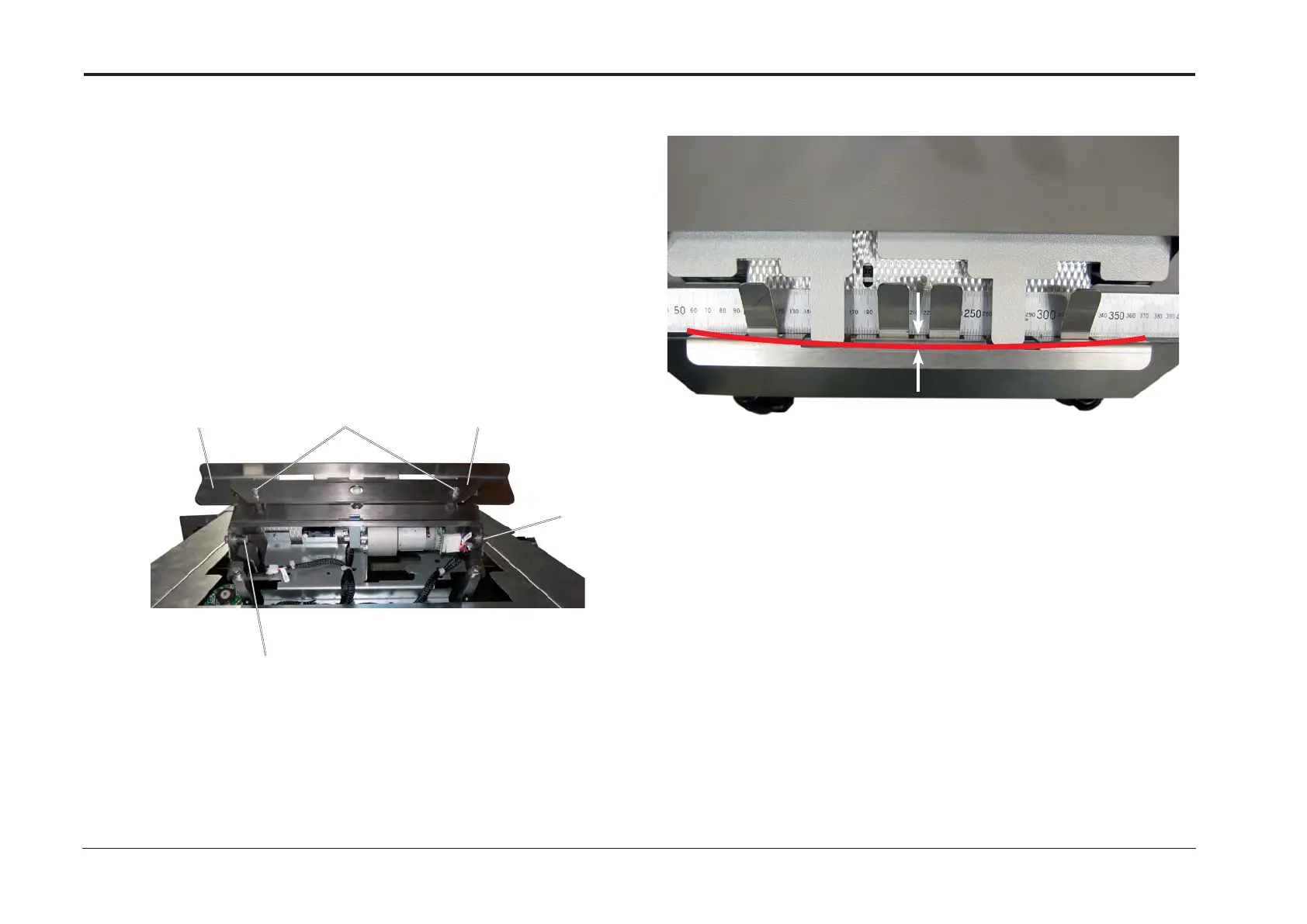

[C]
[A][D] [B]
[C]
max. 0.2 mm
