Plockmatic BM3050 system 27 August 2019 1. Installation Procedure
1-42
NOTE:
Do not turn each nut more than 2 full revolutions before adjusting the other
nuts. Each turn of a nut equals a 1,5 mm (1/16”) travel.
[E]
[D]
5. Reinstall front and rear covers after adjustment.

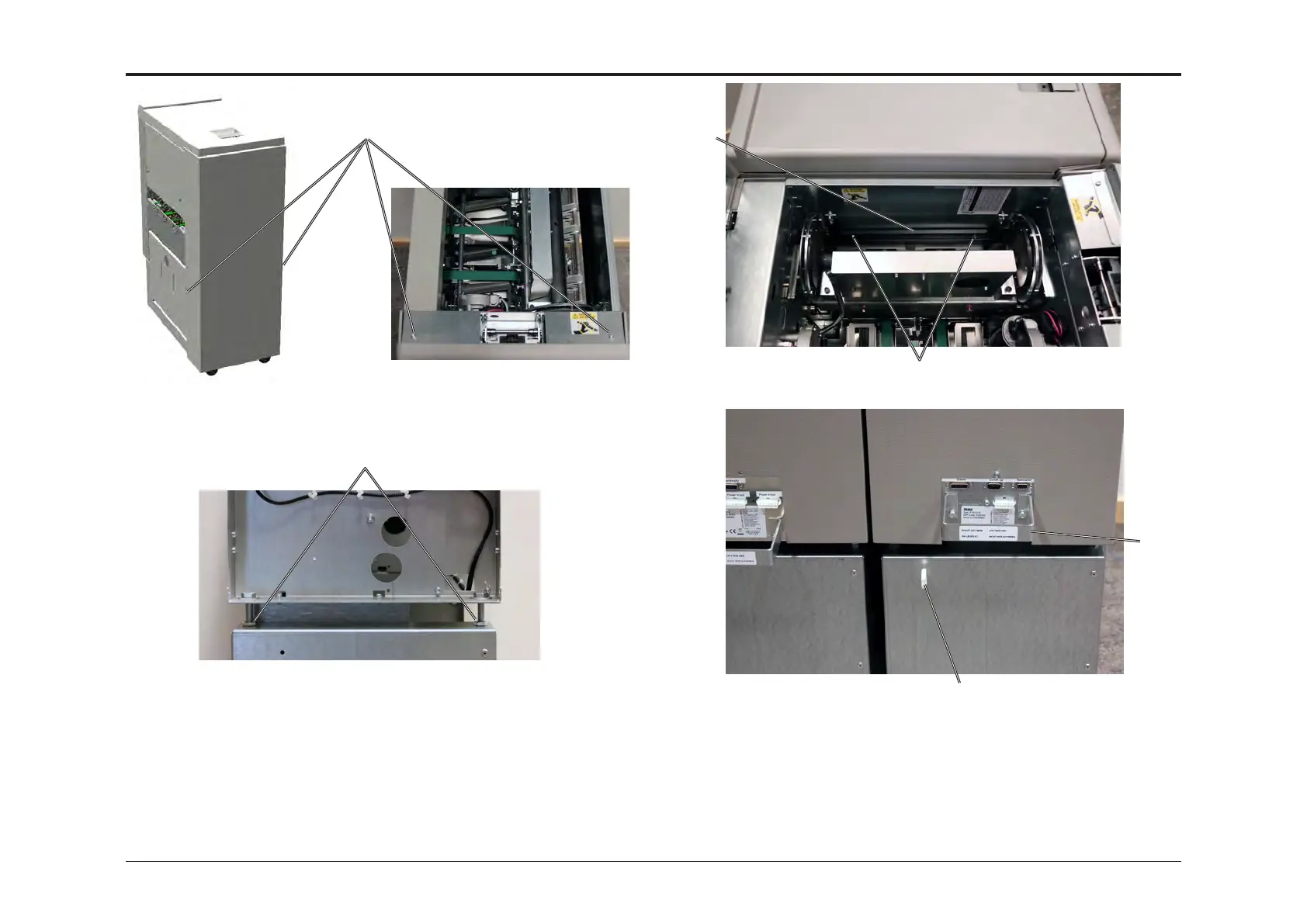

6. Dock the Trimmer to the Square Fold.
7. Lift the docking latch [F] and secure by tightening two nuts [G].
8. Install the cable protector [H] (two screws) to the Trimmer and the
cable holder [I] to the Trimmer base.
[F]
[H]
[I]
[G]
This is the end of the Trimmer to Square Fold installation procedure.
Installing connectors and cables and checking of installation will be done
later on.
Continue with section 1.11 to install Belt Stacker
To Next Page
