Paper Feed Problems
279
9

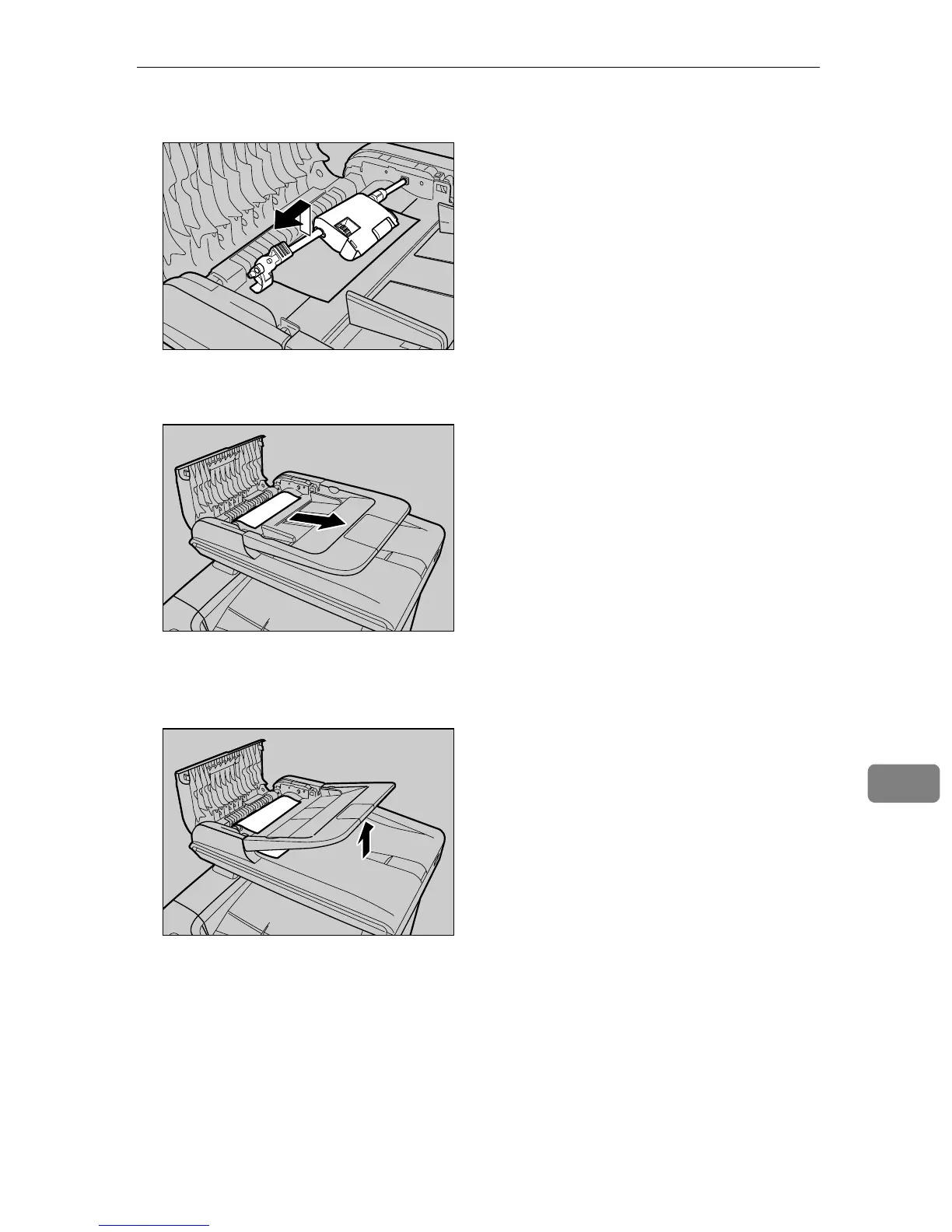

D Lift the paper feed roller slightly and pull it out toward you.
E Gently pull the jammed original to remove it.
F If you cannot pull out the jammed original easily, raise the input tray to see
if the original is jammed in the output area.
BAA151S
BAA153S
BAA166S
