Troubleshooting

280

9

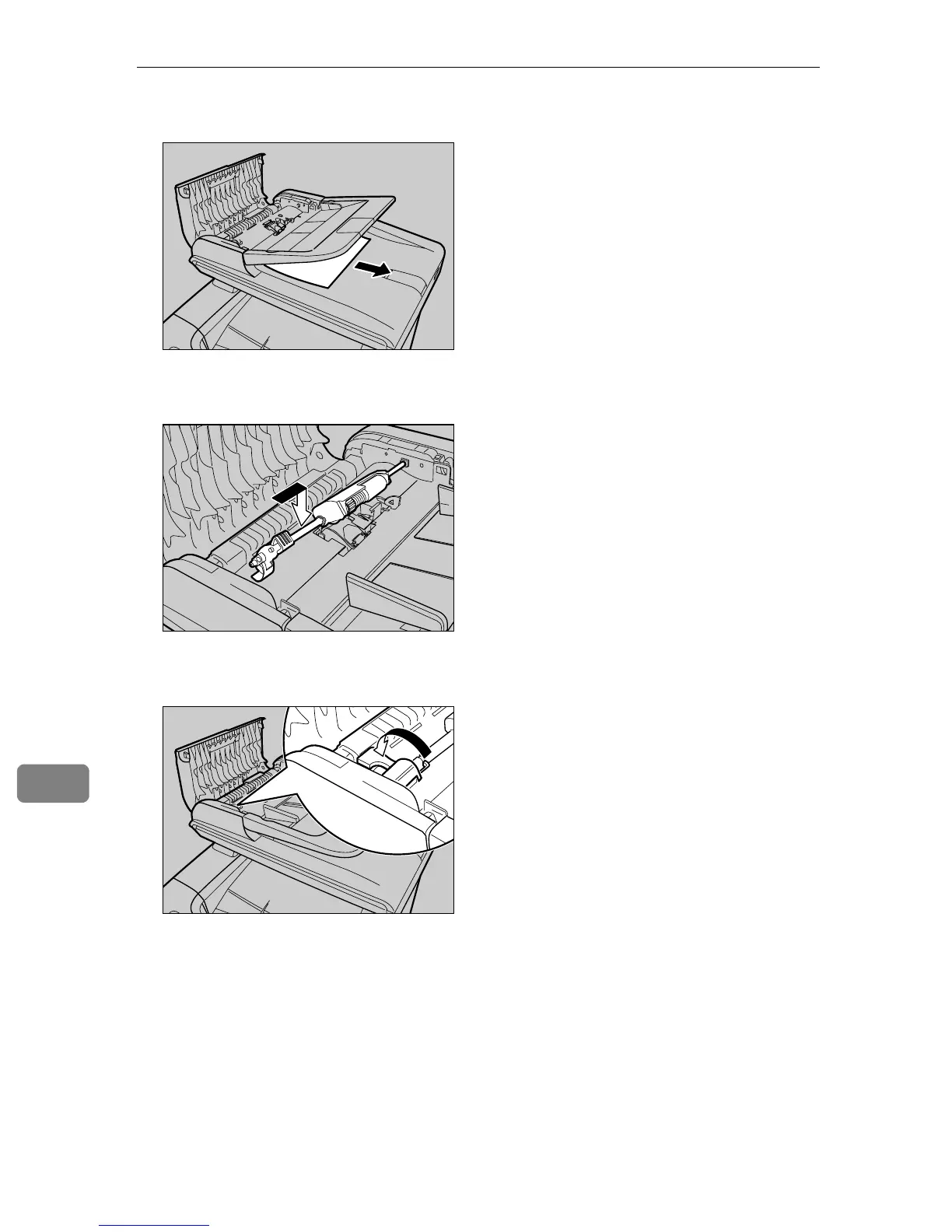

G Gently pull the jammed original to remove it.

H Put the paper feed roller back in with the roller part facing downwards.

I Lower the blue lever to lock the paper feed roller.

BAA167S

BAA154S

BAA155S
