Special Tools and Lubricants
SM 4-7 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
&
Drum Motor Unit

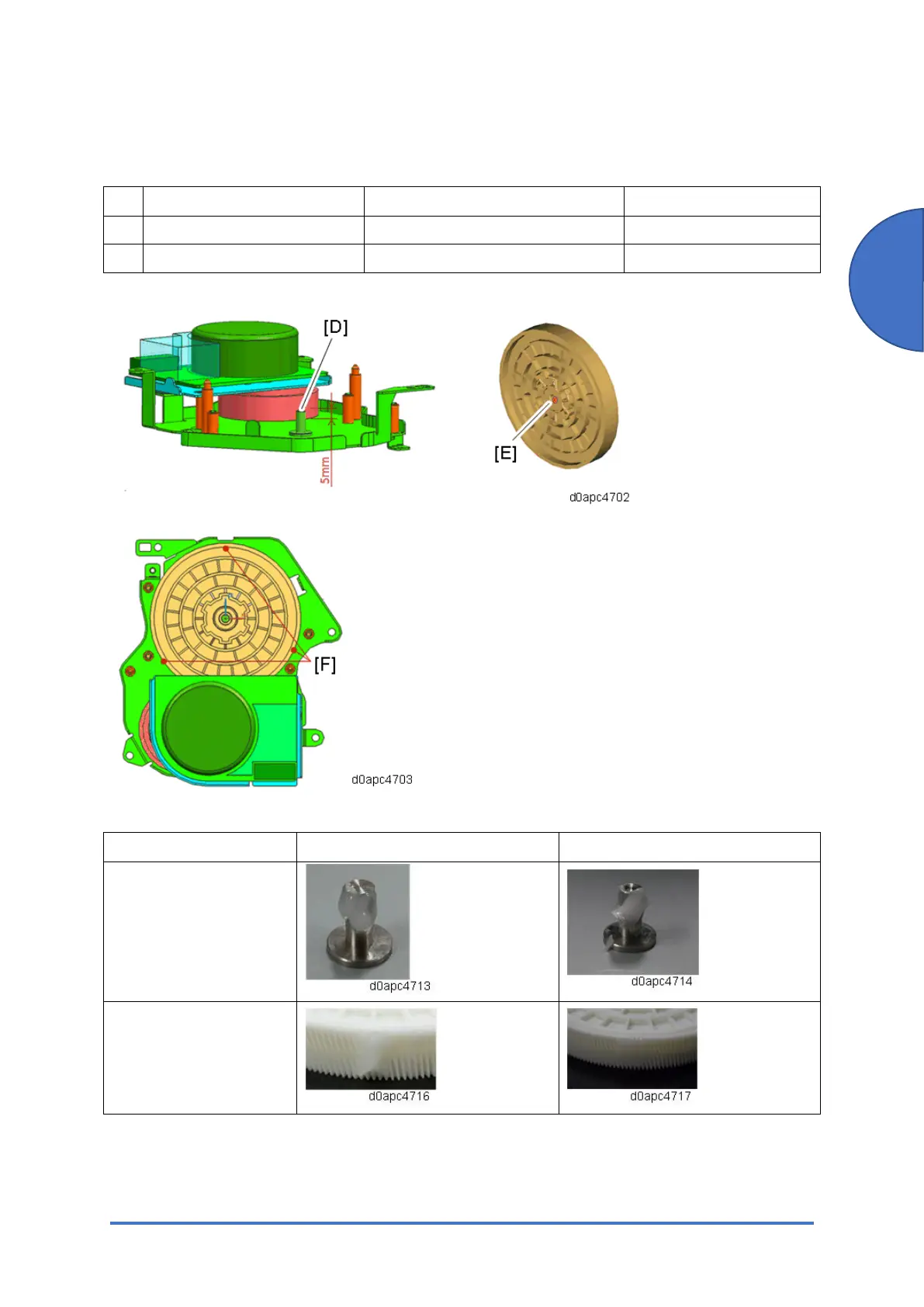

Apply grease in the drum motor unit as shown below.
Location Part name Note
[D] Drum motor unit peen BRACKET:DRIVE:DRUM:PEEN Apply 5 mm to shaft tip.
[F] Drum motor unit gear teeth GEAR:DRIVE:DRUM 3 places
• May also be applied to opposing gear [E] (GEAR: DRIVE: DRUM shaft instead of [D].
Coating Amt. Maximum Minimum
[D]
[F]
To Next Page
