4.10.2 QUENCHING LAMP
1. Remove the PCDU. (PCDU)
2. Remove the upper cover. (Upper Cover (Printer), Upper Cover (MF))
3. MF model: Remove the SCB with bracket. (SCB with the Controller Box (MF Model))

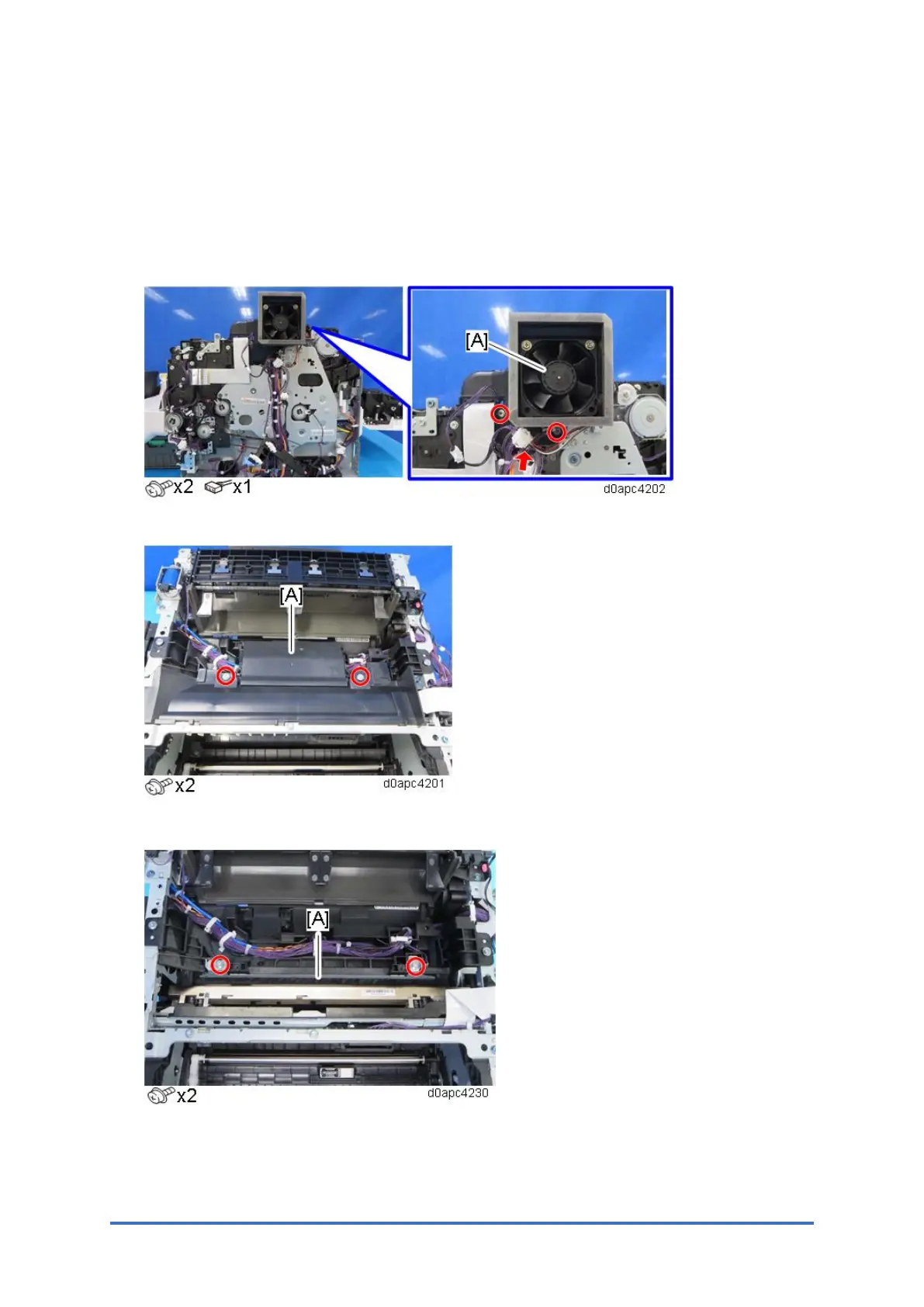

4. MF model: Remove the PCDU cooling fan (right) (FAN1) with duct [A].
5. Remove the inner cover [A].
6. Remove the cleaning brush with the bracket [A].
