4.17.2 BYPASS FEED CLUTCH (CL4)
1. Remove the right cover. (Right Cover (Printer), Right Cover (MF))

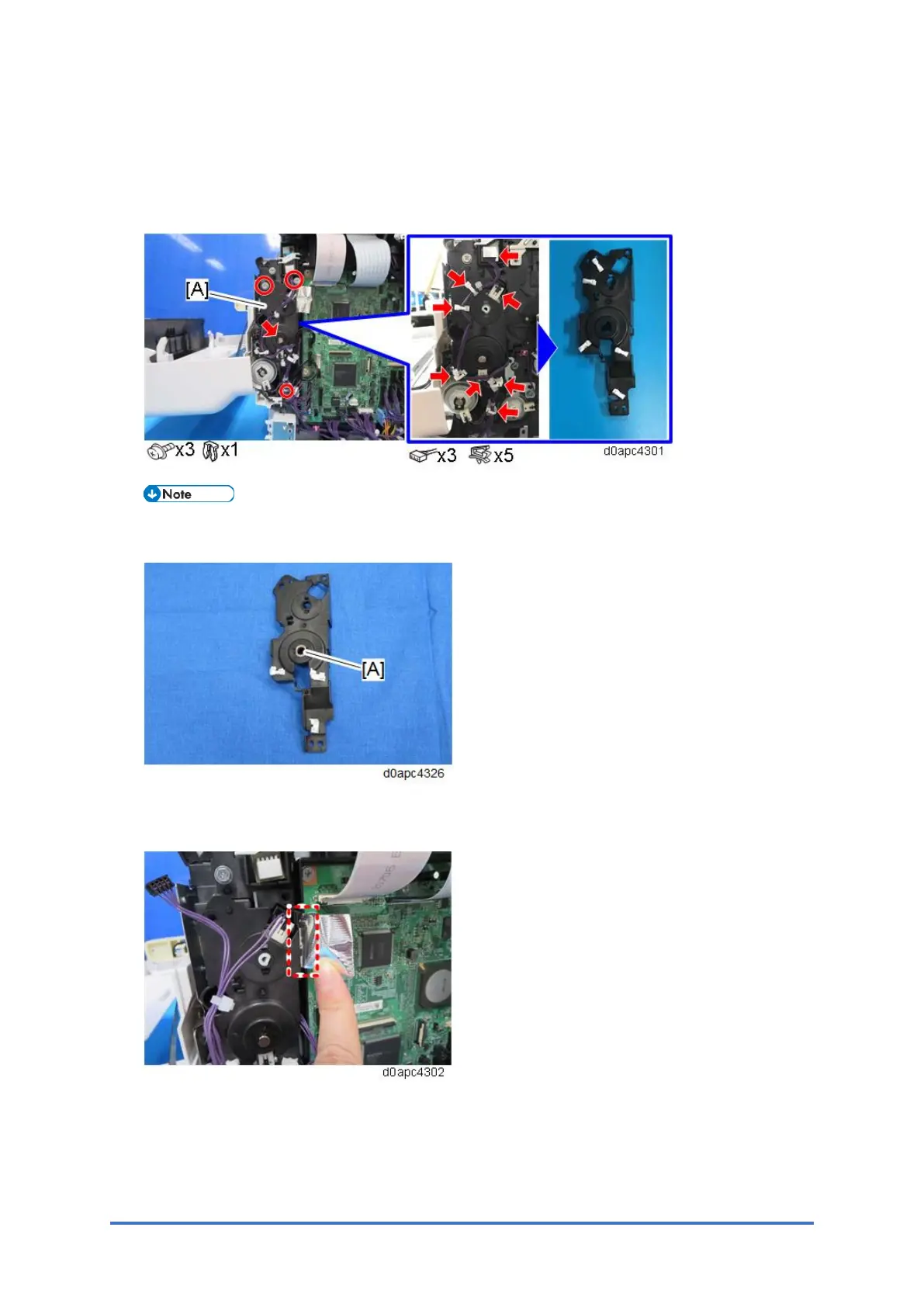

2. Remove the clutch cover [A].
Work carefully when assembling. The bearing [A] can catch easily on the clutch cover and
become disengaged.
MF model: Carefully remove the FFC attached to the clutch cover with double-sided tape
to avoid damage to the FFC.
