Ricoh SAVIN D0AP - Drum Motor (M3)

Drive Units
SM 4-131 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
Replacement
&
Adjustments
4.17.8 DRUM MOTOR (M3)
1. MF model: Remove the SCB with the bracket. (SCB with the Controller Box (MF
Model))
Printer model: Remove the BCU with the bracket. (BCU with the Bracket (Printer
Model))

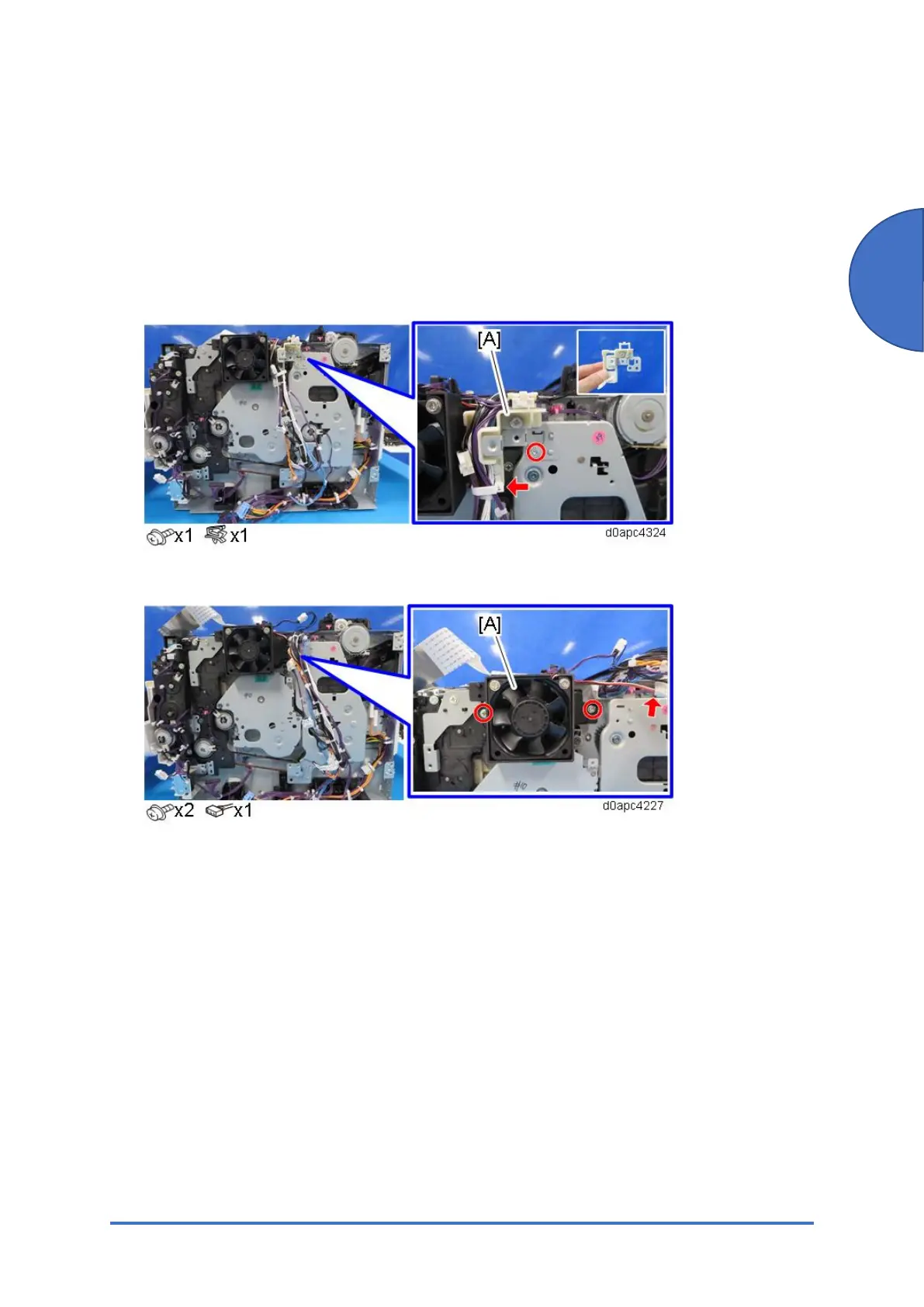

2. Printer model: Remove the harness guide [A].
3. Printer model: Remove the PCDU cooling fan (right) (FAN1) [A] with the duct.
