Ricoh SAVIN D0AP - Paper Feed Drive (Optional Bank)

Special Tools and Lubricants
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-18 SM

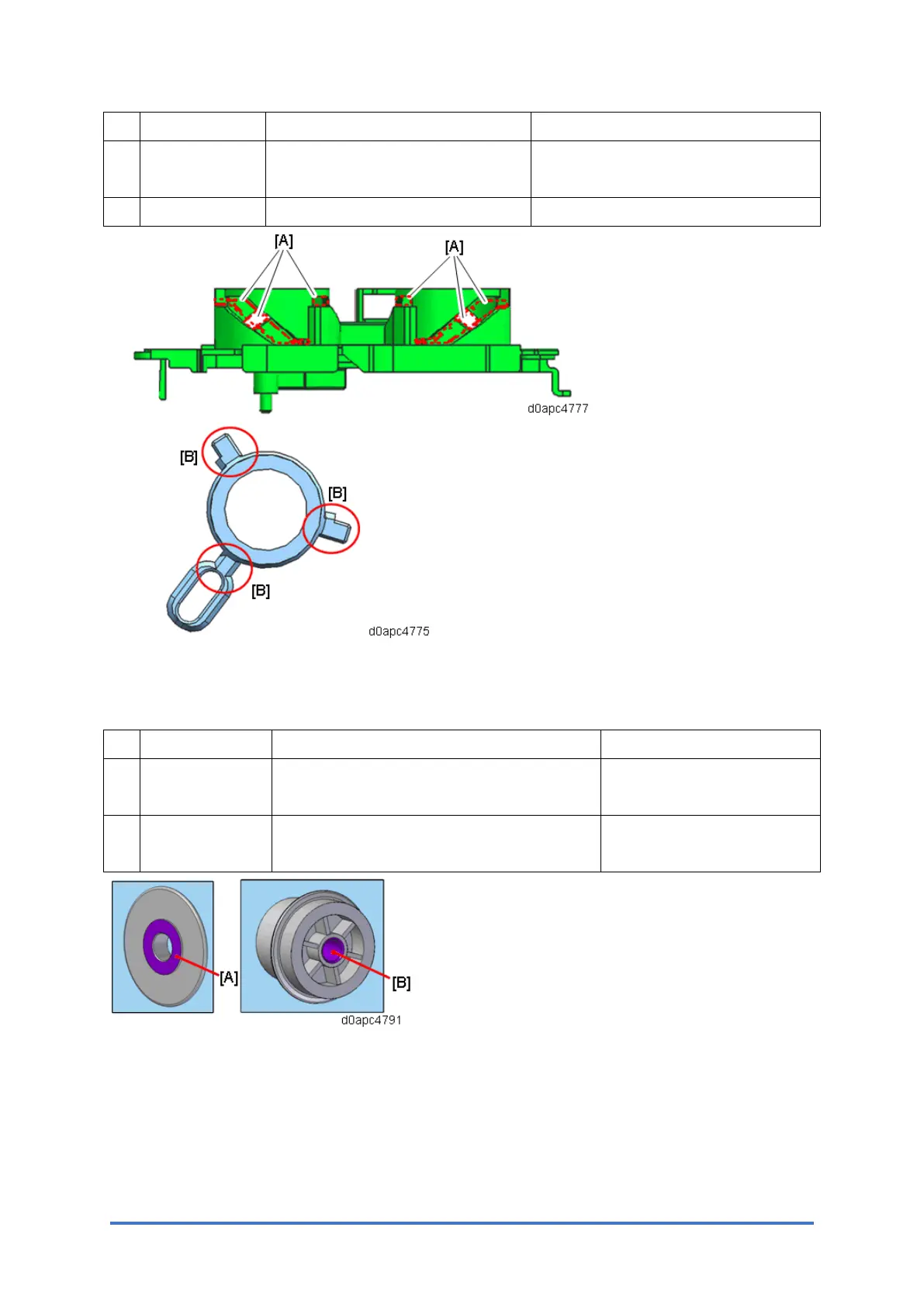

Location Parts name Note
[A] Holder
grooves
HOLDER:DRIVE:TONER
SUPPLY
6 places. Apply to the groove
surfaces.
[B] Link tab LINK:DRIVE:TONER SUPPLY 3 places. Apply to the tab surfaces.
Paper Feed Drive (Optional Bank)
Apply quick-drying grease to the locations shown below.
Location Parts name Note
[A] Flange FLANGE:SYNCHRONOUS BELT Apply to flange and sliding
surface.
[B] Timing pulley
shaft
GEAR:TIMING
PULLEY:TRANSPORT:Z29/T36
Apply to the recessed
surface.
