Ricoh SAVIN D0AP - Fcu Board; Replacement and Adjustment; Replacement Procedure

FCU Board
SM 11 D0C5/D0C6/D0C4/D0AP FAX UNIT
FAX UNIT
(D0C5/D0C6
/D0C4/D0AP)
2. REPLACEMENT AND ADJUSTMENT
2.1 FCU BOARD
The FCU board of the service part contains the following items included in the package.
• FCU board
• FFC
• Jumper
• Bracket
When you replace the FCU board, transfer the SRAM data from the old FCU board to the new
FCU board.
The following data can be transferred:
• TTI
• RTI
• CSI
• Fax bit switch settings
• RAM address settings
• NCU parameter settings.
2.1.1 REPLACEMENT PROCEDURE
Unplug the power cord before starting the following procedure.
1. Remove the paper cassette.

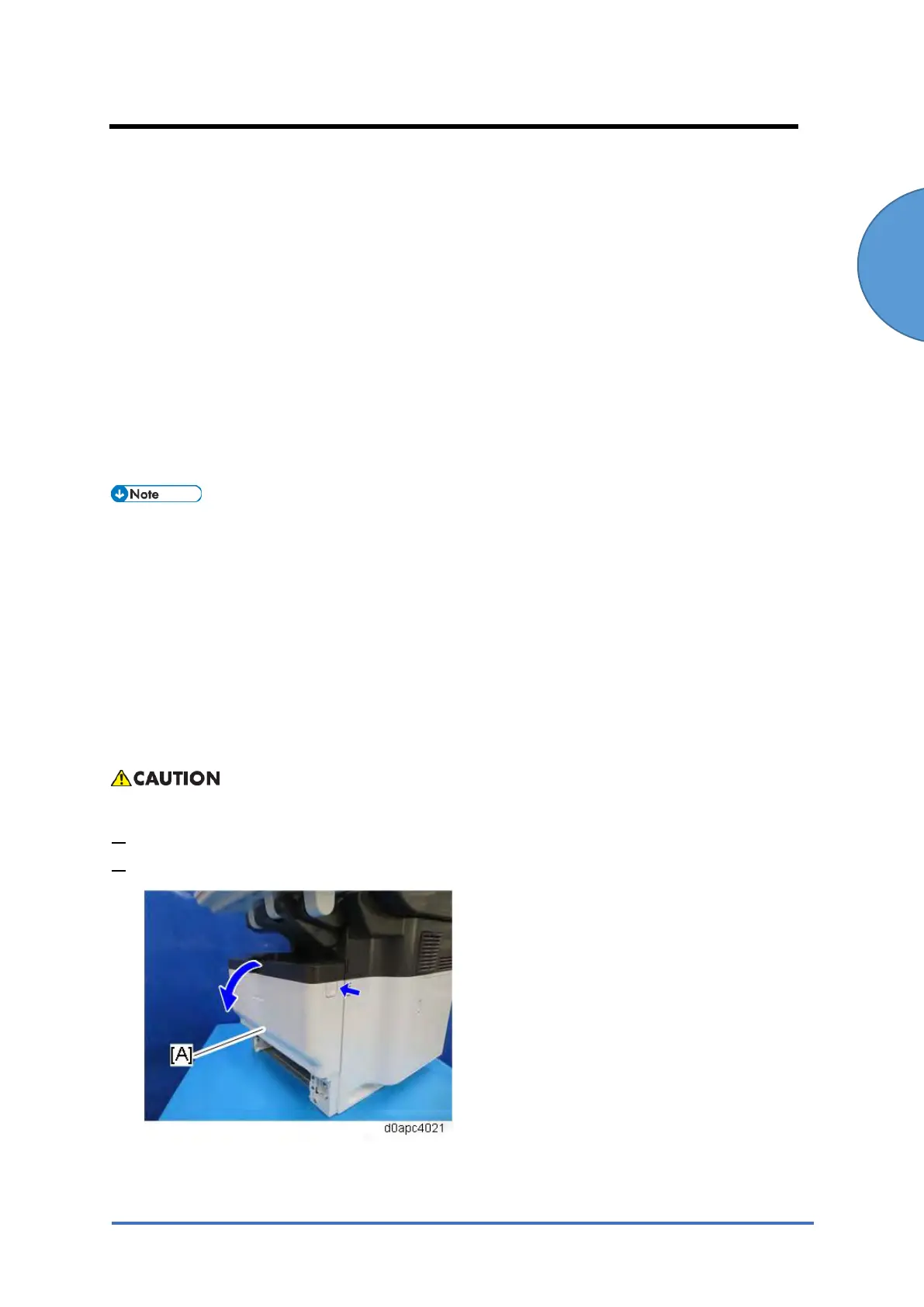

2. Open the front cover [A] by pressing the front cover button.
