Special Tools and Lubricants
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-12 SM
Coating Amt. Maximum Minimum
[E]
Fusing Pressure/Release Motor Drive
Fusing Pressure/Release Motor Unit

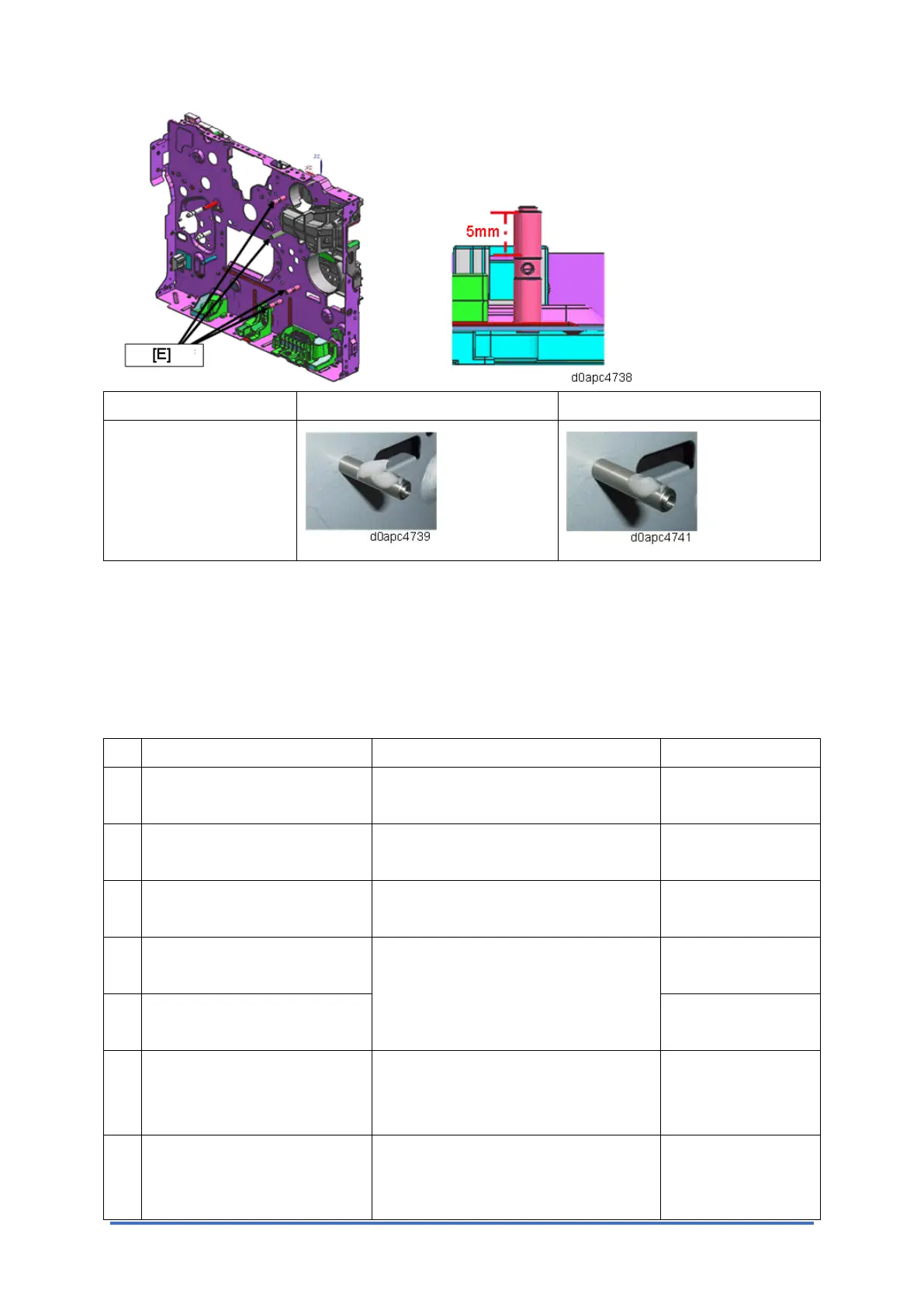

Apply silent grease to the fusing pressure/release motor unit at the locations shown below.
Location Part name Note
[A] Fusing pressure/release
motor peen
BRACKET:DRIVE:PRESSURE
RELEASE:PEEN
5 mm from the tip.
[B] Lubricated bearing of fusing
pressure/release motor
PLAIN SHAFT BEARING:4X8X2.8
[C] Fusing pressure/release
motor peen
BRACKET:DRIVE:PRESSURE
RELEASE:PEEN
2 places. 5 mm
from the tip.
[D] Small gear teeth of fusing
pressure/release motor unit
GEAR:DRIVE:PRESSURE
RELEASE:SUN
[E] Large gear teeth of fusing
pressure/release motor unit
[F] Worm gear of fusing
pressure/release motor
WORM GEAR:DRIVE:PRESSURE
RELEASE:Z2
Motor bearing
housing cannot be
exposed.
[G] Surfaces of fusing
pressure/release motor unit
gear teeth
WORM WHEEL:DRIVE:PRESSURE
RELEASE:Z25
To Next Page
