Ricoh SAVIN D0AP - Rear Lower Cover (Mf)

Exterior Covers (MF Model)
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-42 SM
4.6.5 REAR LOWER COVER (MF)
1. Remove the right cover. (Right Cover (MF))
2. Remove the left cover. (Left Cover (MF))

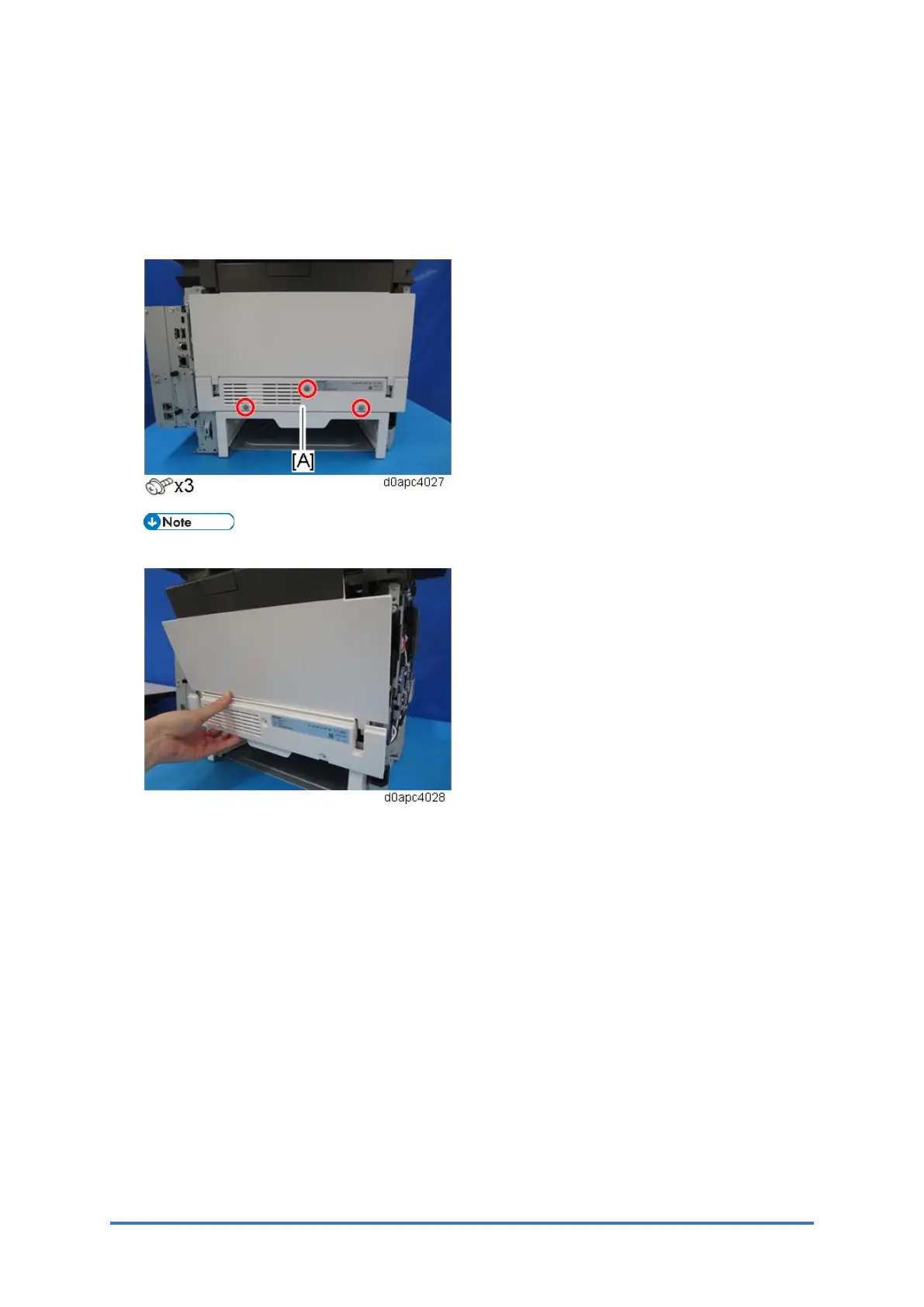

3. Remove the rear lower cover [A].
Open the rear cover slightly and remove the rear lower cover.
