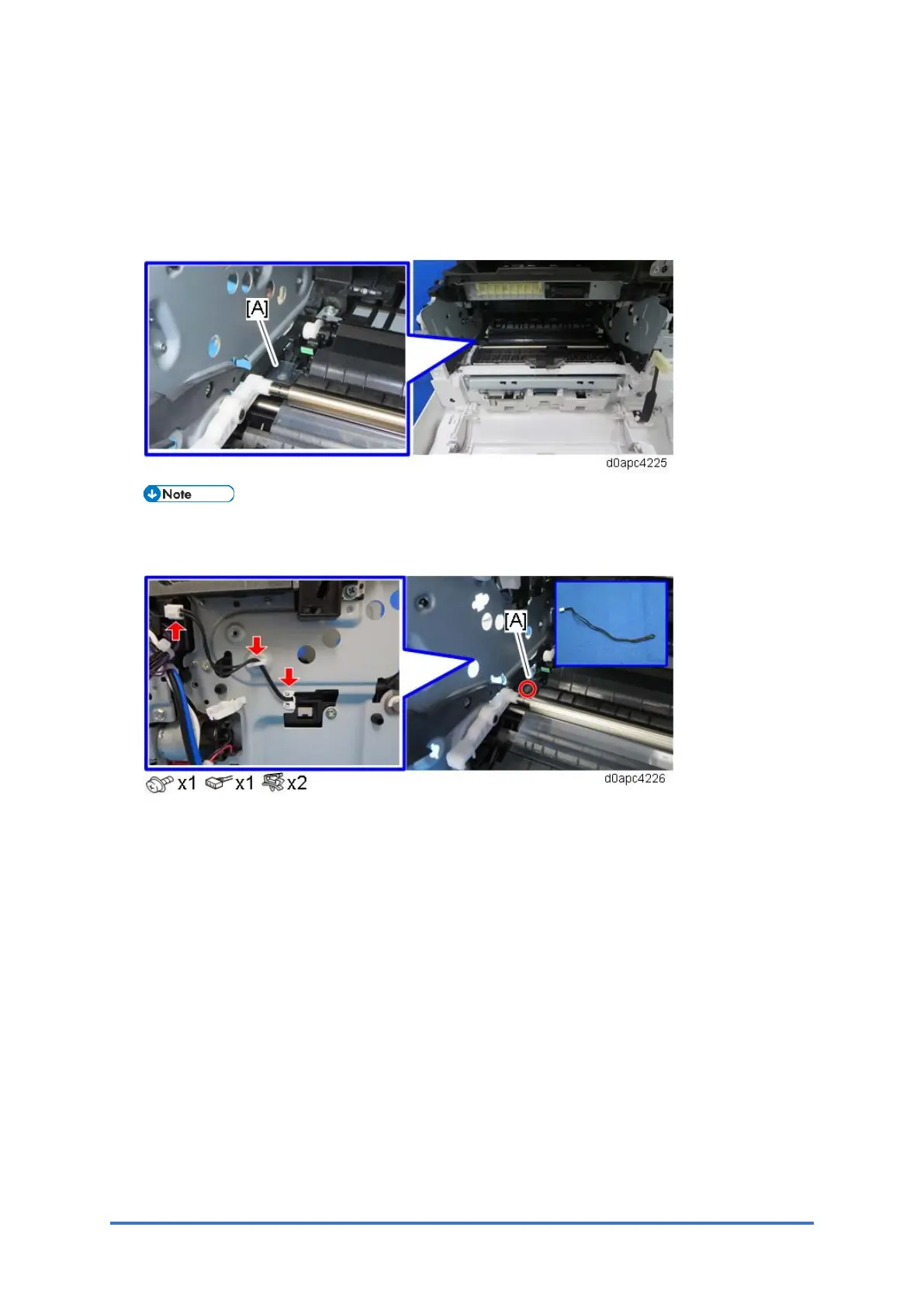

4.13.3 IMAGE CREATION THERMISTOR (TH5)
1. Remove the PCDU. (PCDU)
2. Remove the HVPS with the bracket. (HVPS with the Bracket)
3. Remove the cover seal [A] for the image creation thermistor (TH5).
Do not reuse the removed cover seal. Replace it with a new seal.
4. Remove the image creation thermistor (TH5) [A].
To Next Page
