Ricoh SAVIN D0AP - Hot Roller Stripper

Fusing
SM 4-97 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
Replacement
&
Adjustments

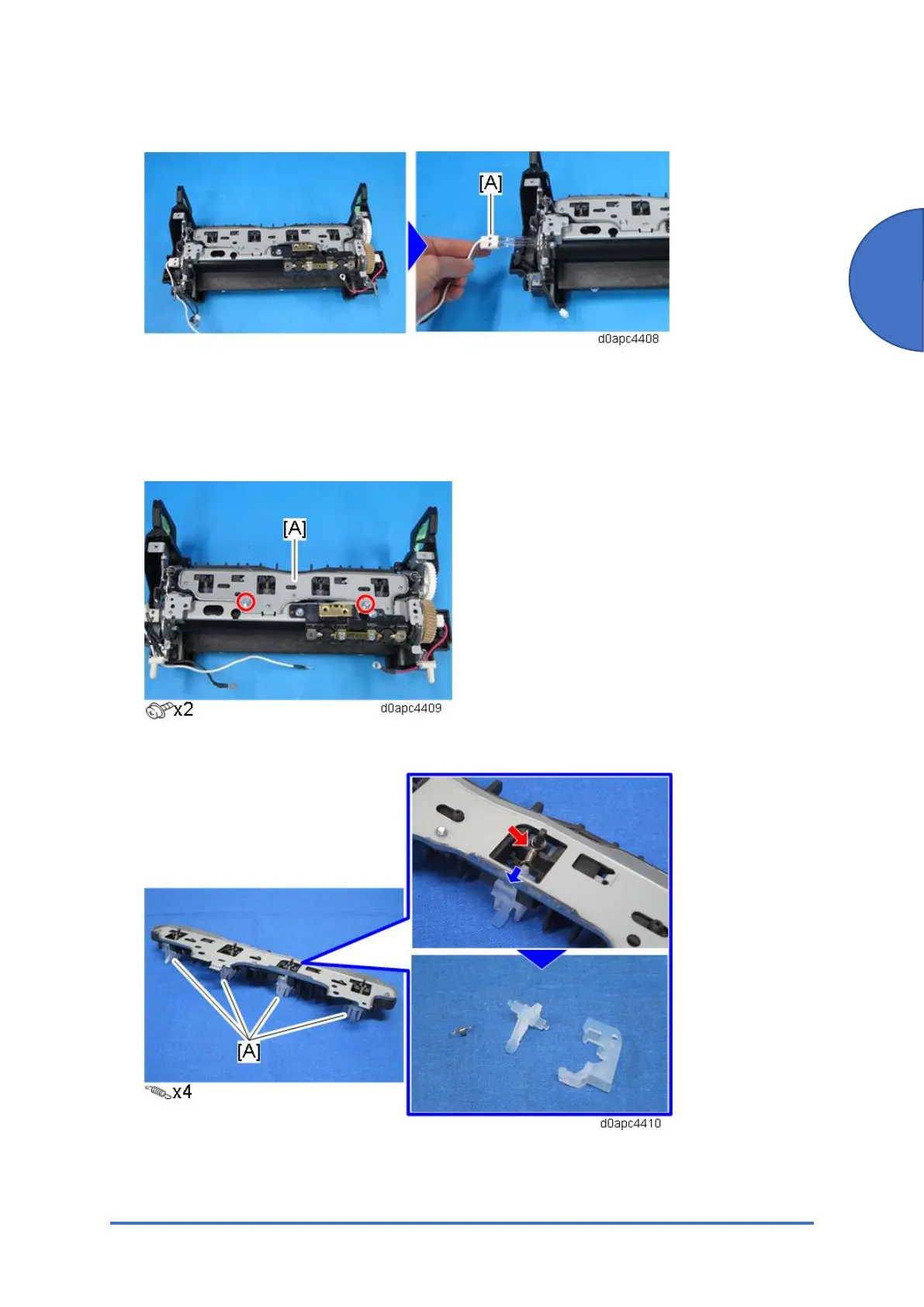

2. Pull out the fusing lamp [A] from the left side.
4.14.6 HOT ROLLER STRIPPER
1. Remove the fusing upper cover. (Fusing Upper Cover)
2. Remove the hot roller strippers with the bracket [A].
3. Release the hooks and springs to remove the hot roller strippers [A].
