Ricoh SAVIN D0AP - Fusing Thermopile (Th2)

Fusing
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-102 SM
4.14.9 FUSING THERMOPILE (TH2)

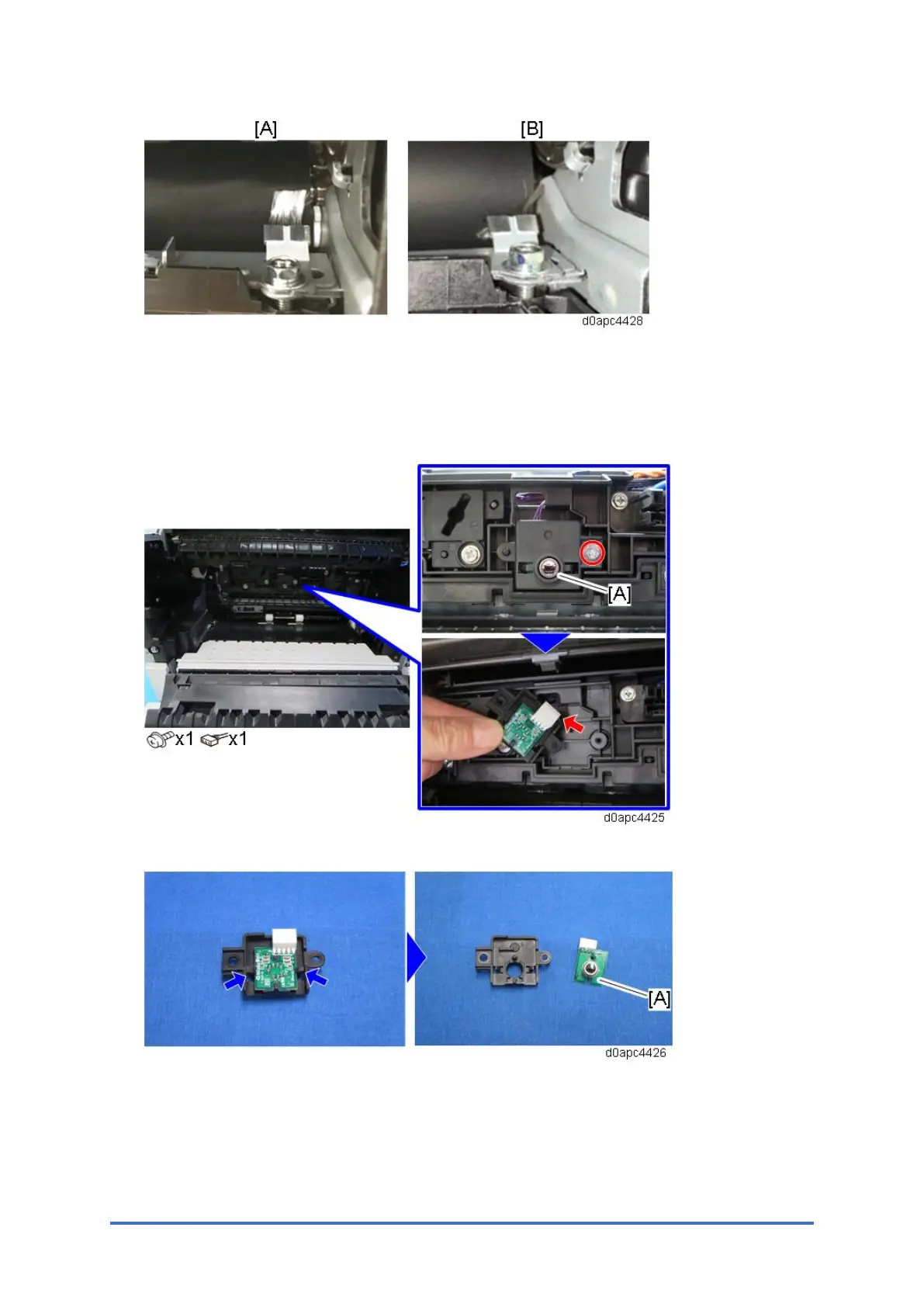

1. Remove the fusing unit. (Fusing Unit)
2. Remove the fusing thermopile (TH2) with the cover [A], and then disconnect the connector.
3. Release the two hooks to remove the thermopile (TH2) [A] from the cover.
