Ricoh SAVIN D0AP - Spdf Relay Board; Spdf Drive Motor (M6)

SPDF (MF Model Only)
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-58 SM

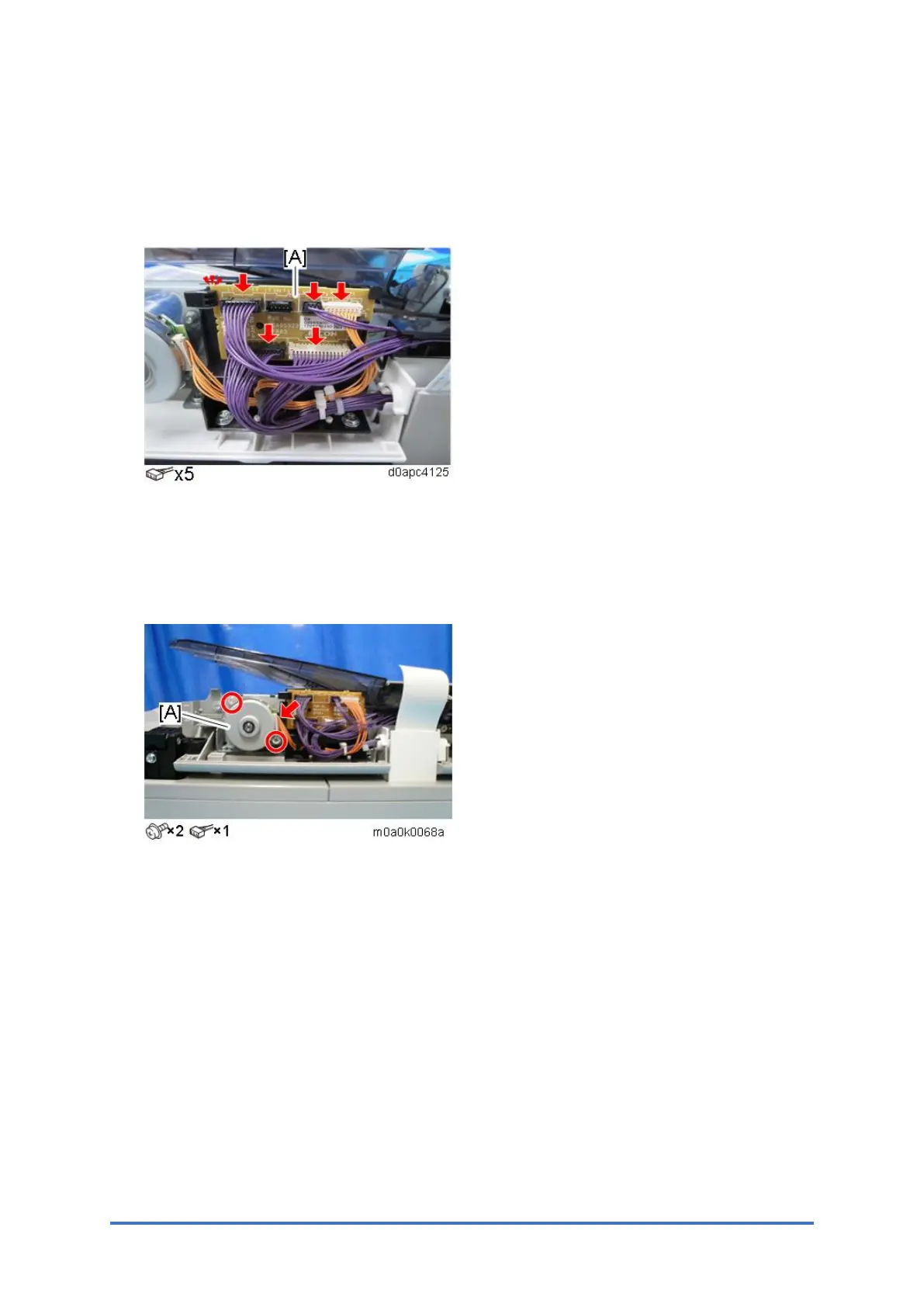

4.8.5 SPDF RELAY BOARD
1. Remove the SPDF rear cover. (SPDF Rear Cover)
2. Release the hook, and then remove the SPDF relay board [A].
4.8.6 SPDF DRIVE MOTOR (M6)
1. Remove the SPDF rear cover. (SPDF Rear Cover)
2. Remove the SPDF drive motor (M6) [A].
