Ricoh SAVIN D0AP - Feed;Fusing Motor (M4)

Drive Units
SM 4-133 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
Replacement
&
Adjustments

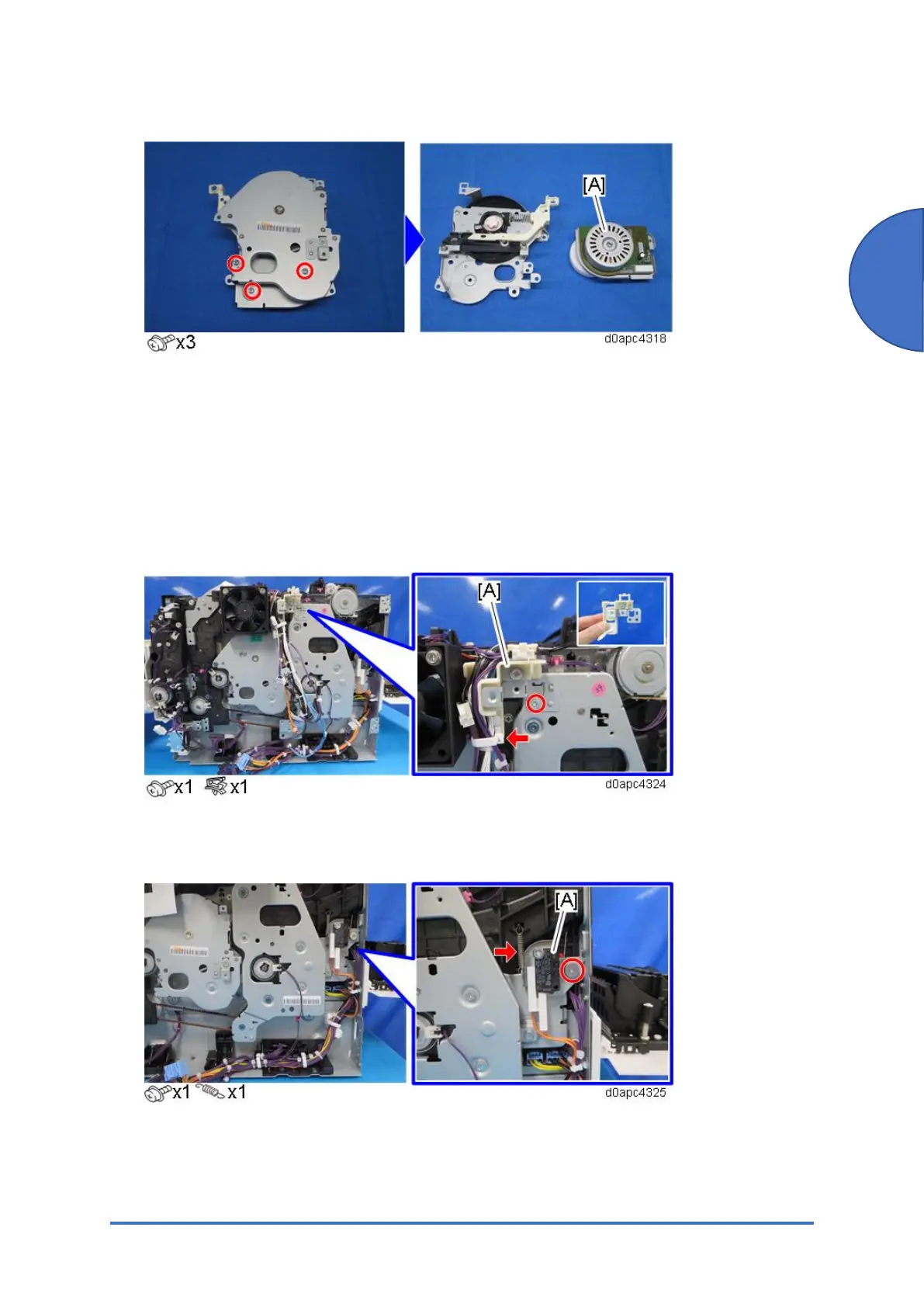

6. Remove the drum motor (M3) [A].
4.17.9 FEED/FUSING MOTOR (M4)
1. MF model: Remove the SCB with the bracket. (SCB with the Controller Box (MF
Model))
Printer model: Remove the BCU with the bracket. (BCU with the Bracket (Printer
Model))
2. Printer model: Remove the harness guide [A].
3. Remove the duplex clutch (CL1). (Duplex Clutch (CL1))
4. Remove the Rear interlock switch (SW2) [A] with the bracket.
