Ricoh SAVIN D0AP - Bypass Feed Unit

Paper Feed
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-110 SM
4.15.5 BYPASS FEED UNIT
1. Remove the right cover. (Right Cover (Printer), Right Cover (MF))
2. Remove the left cover. (Left Cover (Printer), Left Cover (MF))
3. Remove the front cover. (Front Cover (Printer), Front Cover (MF))
4. Remove the bypass feed roller. (Bypass Feed Roller)
5. Remove the bypass lift clutch (CL3). (Bypass Lift Clutch (CL3))

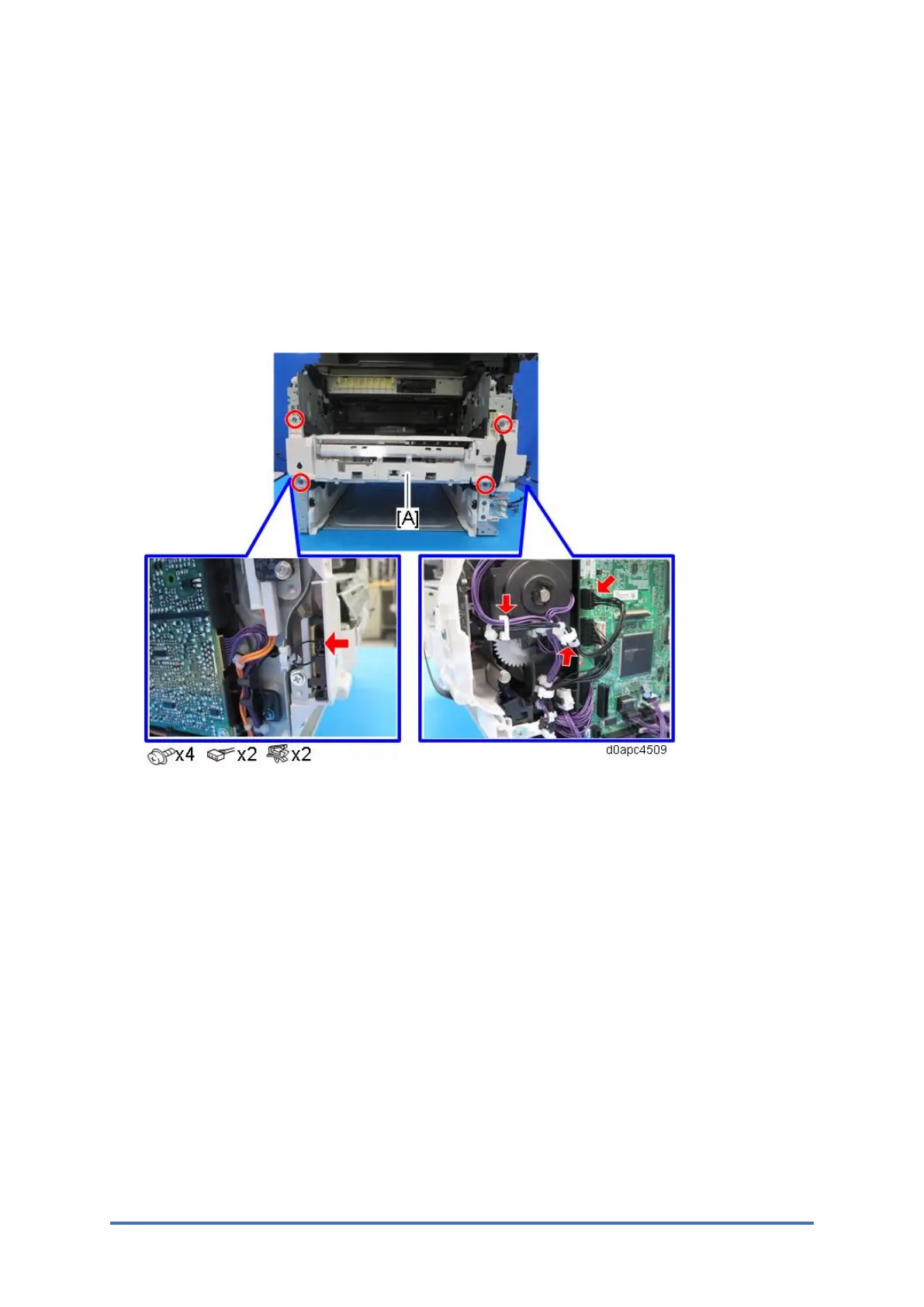

6. Remove the bypass feed unit [A].
