Ricoh SAVIN D0AP - Spdf Rear Cover

SPDF (MF Model Only)
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-56 SM

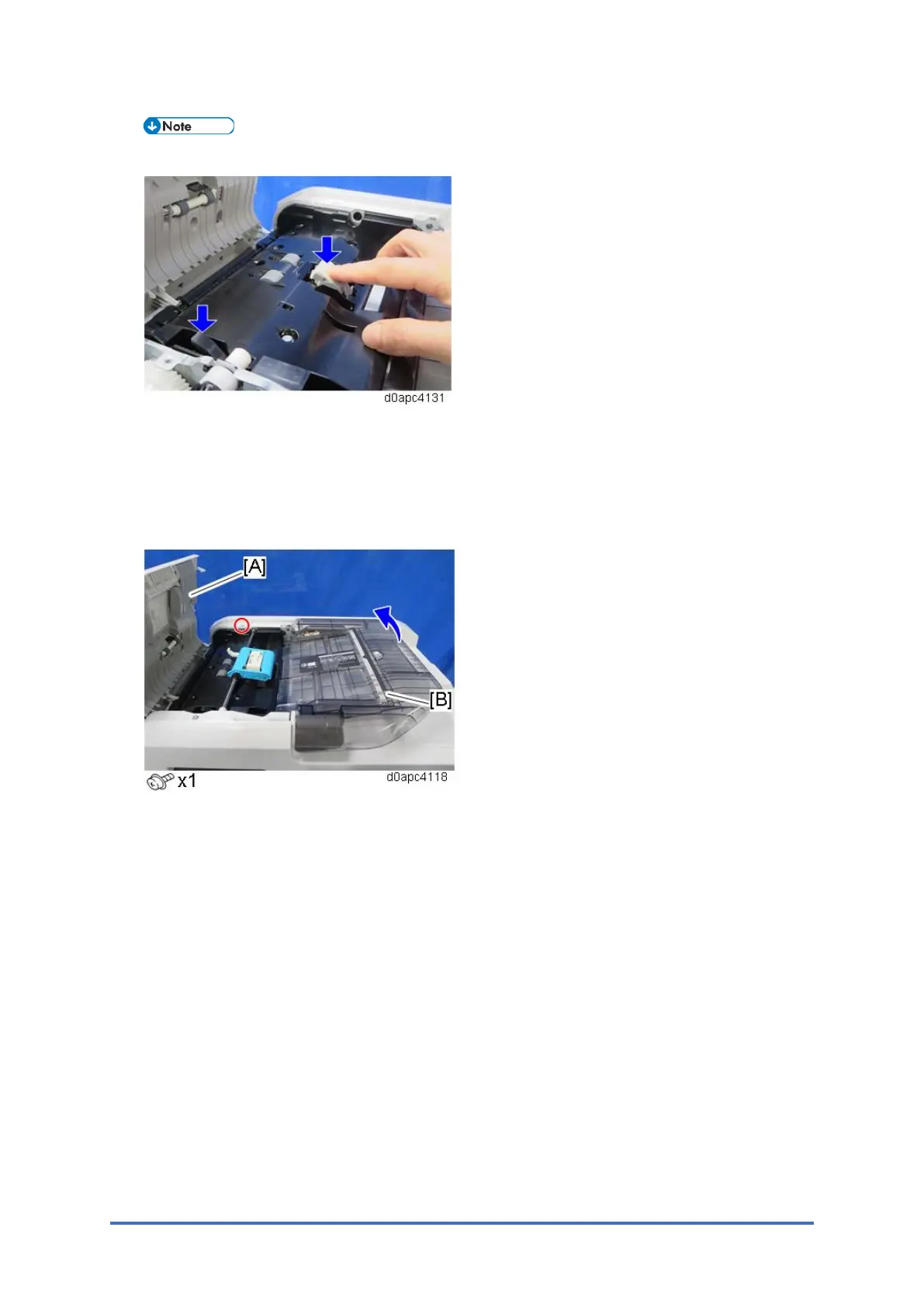

When reinstalling the SPDF friction pad, push the lock lever and friction pad down together.
4.8.4 SPDF REAR COVER
1. Open the SPDF top cover [A] and remove the screw.
2. Lift the original tray [B].
