4.3.3 LOCATIONS TO APPLY GREASE IN THE FUSING UNIT
Inside Fusing Unit

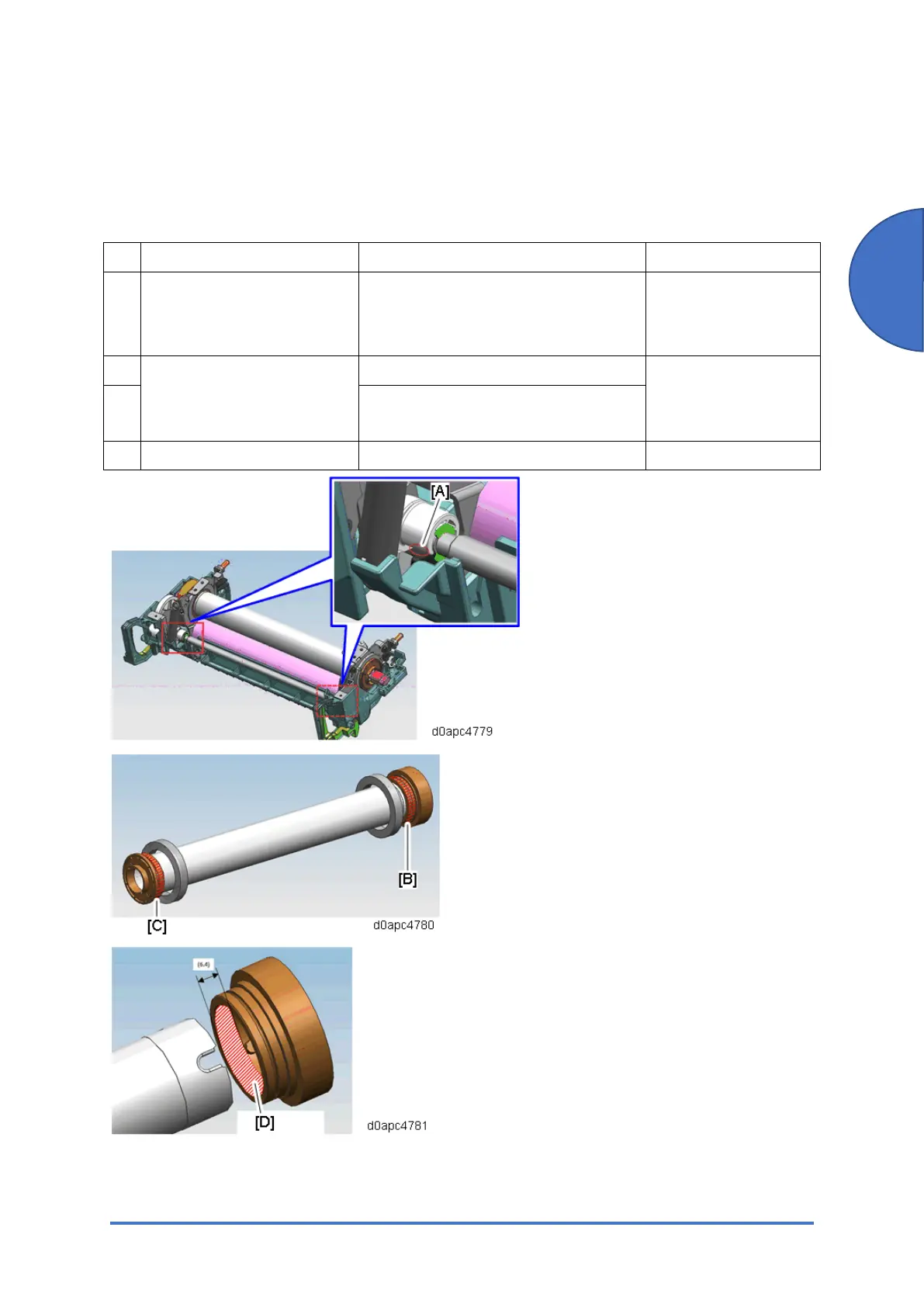

Apply Barrierta grease at the locations shown below
Location Part name Note
[A] Between fusing unit
separation cam and
pressure lever
CAM:ON-O F F,
COVER:LEVER:PRESSURE
2 places.
[B] Hot roller bushing insertion
point
GEAR:HOT ROLLER 2 places (both sides
of hot roller bushing).
[C] THERMAL INSULATING
BUSHING:HOT ROLLER
[D] Inside hot roller gear GEAR:HOT ROLLER
