Ricoh SAVIN D0AP - Feed Cover Sensor (S15), Original Set Sensor (S14); Spdf Registration Sensor (S16)

SPDF (MF Model Only)
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-62 SM

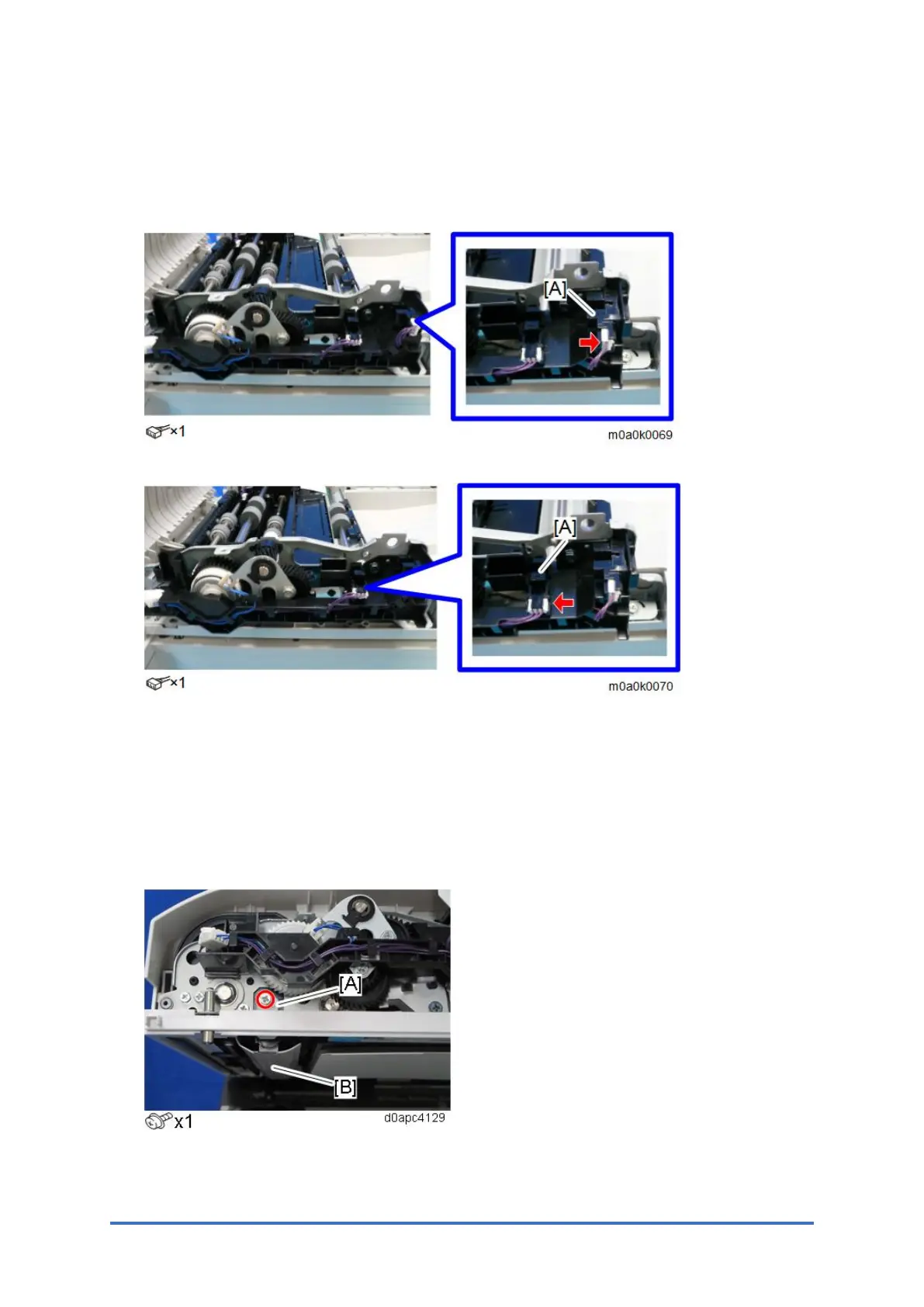

4.8.9 FEED COVER SENSOR (S15), ORIGINAL SET SENSOR (S14)
1. Remove the SPDF front cover. (SPDF Front Cover)
2. Remove the feed cover sensor (S15) [A].
3. Remove the original set sensor (S14) [A].
4.8.10 SPDF REGISTRATION SENSOR (S16)
1. Remove the SPDF front cover. (SPDF Front Cover)
2. Open the SPDF.
3. Remove the plate [A] and then remove the scanning guide plate [B].
