Ricoh SAVIN D0AP - Fusing Pressure;Release Motor (M2); Fusing Nip Pressure Position Sensor (S7)

Fusing
SM 4-103 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
Replacement
&
Adjustments

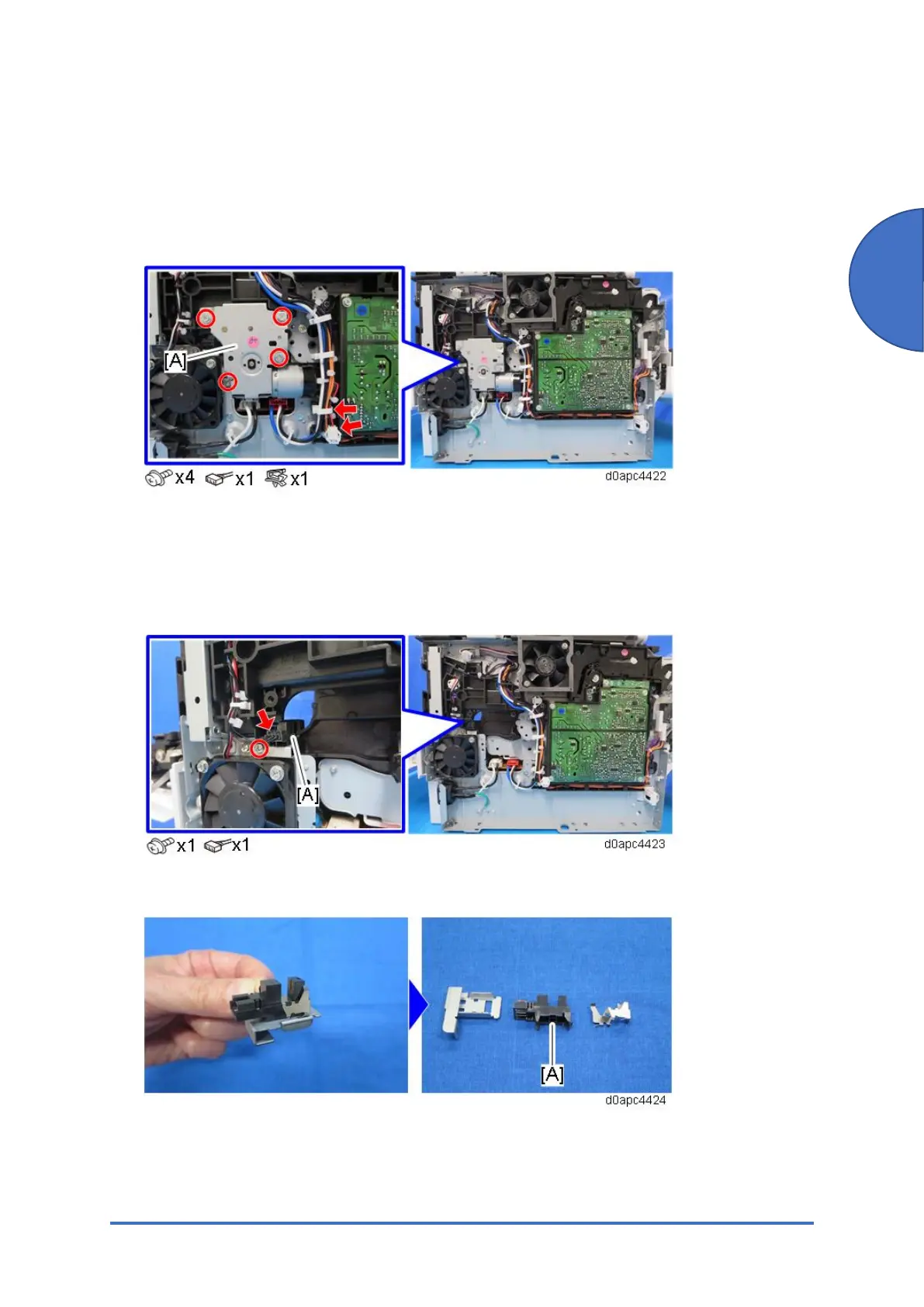

4.14.10 FUSING PRESSURE/RELEASE MOTOR (M2)
1. Remove the left cover. (Left Cover (Printer), Left Cover (MF))
2. Remove the fusing unit. (Fusing Unit)
3. Remove the fusing pressure/release motor (M2) [A].
4.14.11 FUSING NIP PRESSURE POSITION SENSOR (S7)
1. Remove the fusing pressure/release motor (M2). (Fusing Pressure/Release Motor (M2))
2. Remove the Fusing nip pressure position sensor (S7) [A] with the bracket.
3. Remove the Fusing nip pressure position sensor (S7) [A] from the bracket.
