Main Machine Installation (IM 430Fb)
SM 2-23 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1

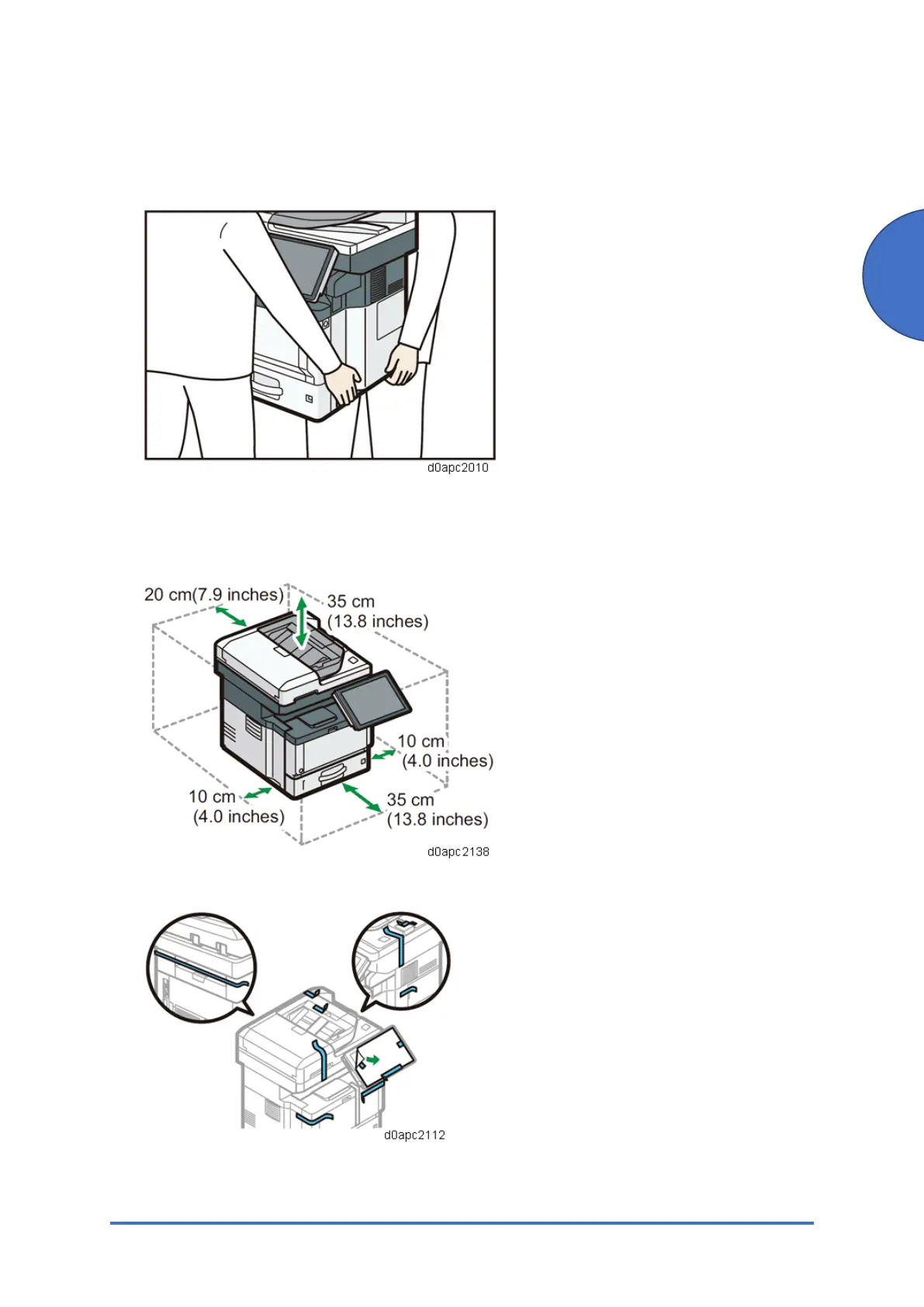

Removal of Packing Materials and Shipping Retainers
1. Hold the inset grips on both sides of the machine with two people as shown above, and
slowly lift and move the machine.
2. Lower the machine slowly when positioning it.
Do not put anything in the space around the machine, so that you can load paper, replace
consumables, and clear paper jams easily.
3. Remove all the narrow tapes and protective sheet from the outside of the machine.
To Next Page
