4.18 ELECTRICAL COMPONENTS
4.18.1 SCB (MF MODEL)

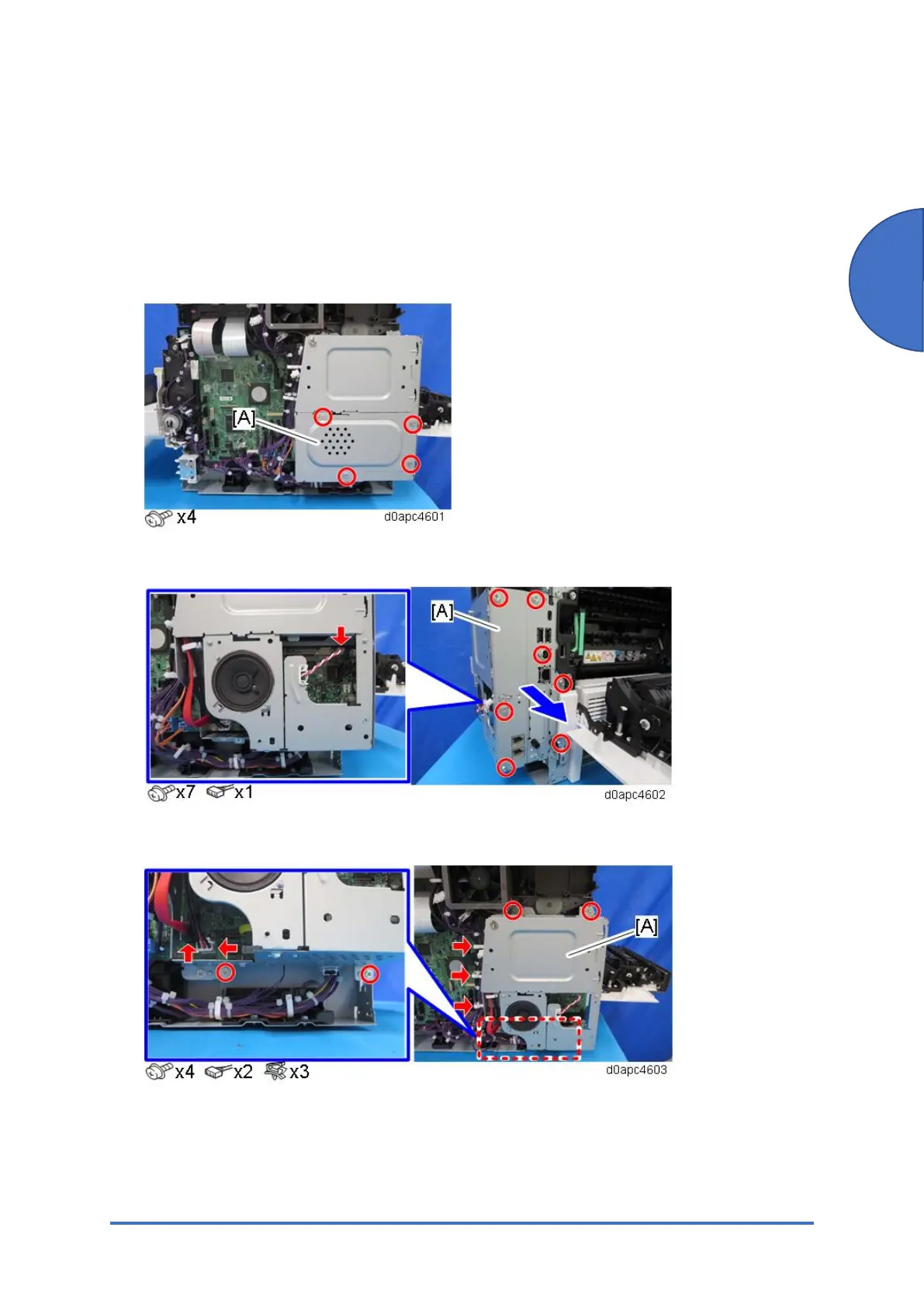

1. Remove the right cover. (Right Cover (MF))
2. Remove the controller box lower cover [A].
3. Disconnect the harness, and then pull out the interface cover [A] to remove it.
4. Remove the controller box [A].
