Ricoh SAVIN D0AP - Locations to Apply Grease; Drum Drive

Special Tools and Lubricants
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-6 SM
4.3.1 LOCATIONS TO APPLY GREASE
Drum Drive
Drum Motor

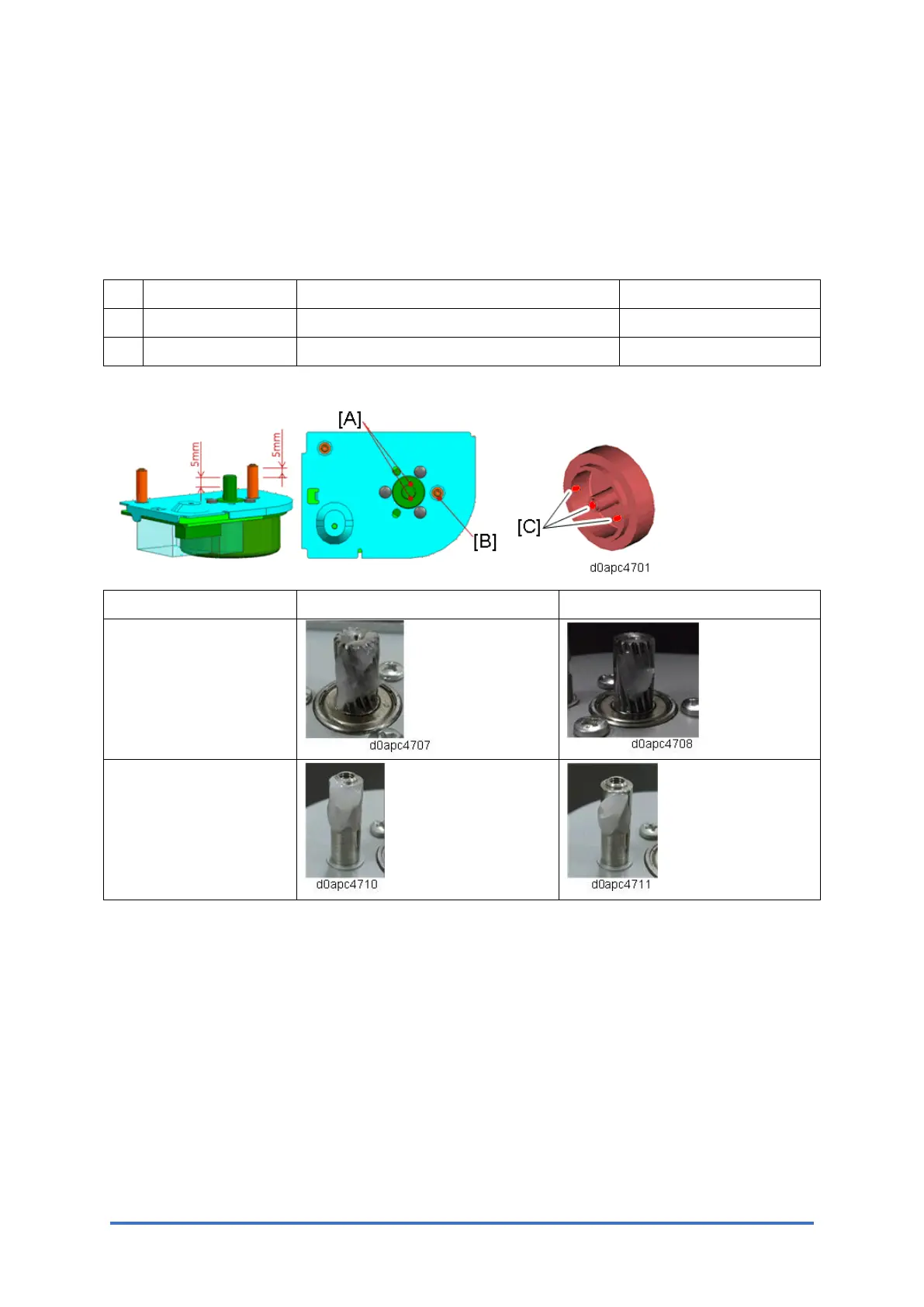

Apply grease to the drum motor as shown below.
Location Part name Note
[A] Drum motor shaft DC BRUSHLESS MOTOR:DRUM:26W Apply 5 mm to shaft tip.
[B] Drum motor peen BRACKET:DRIVE:MOTOR:PEEN Apply 5 mm to shaft tip.
• May also be applied to opposing gear [C] (Gear: Drum: 1st) instead of [A] and [B].
Coating Amt. Maximum Minimum
[A]
[B]
