Fusing
SM 4-101 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
&

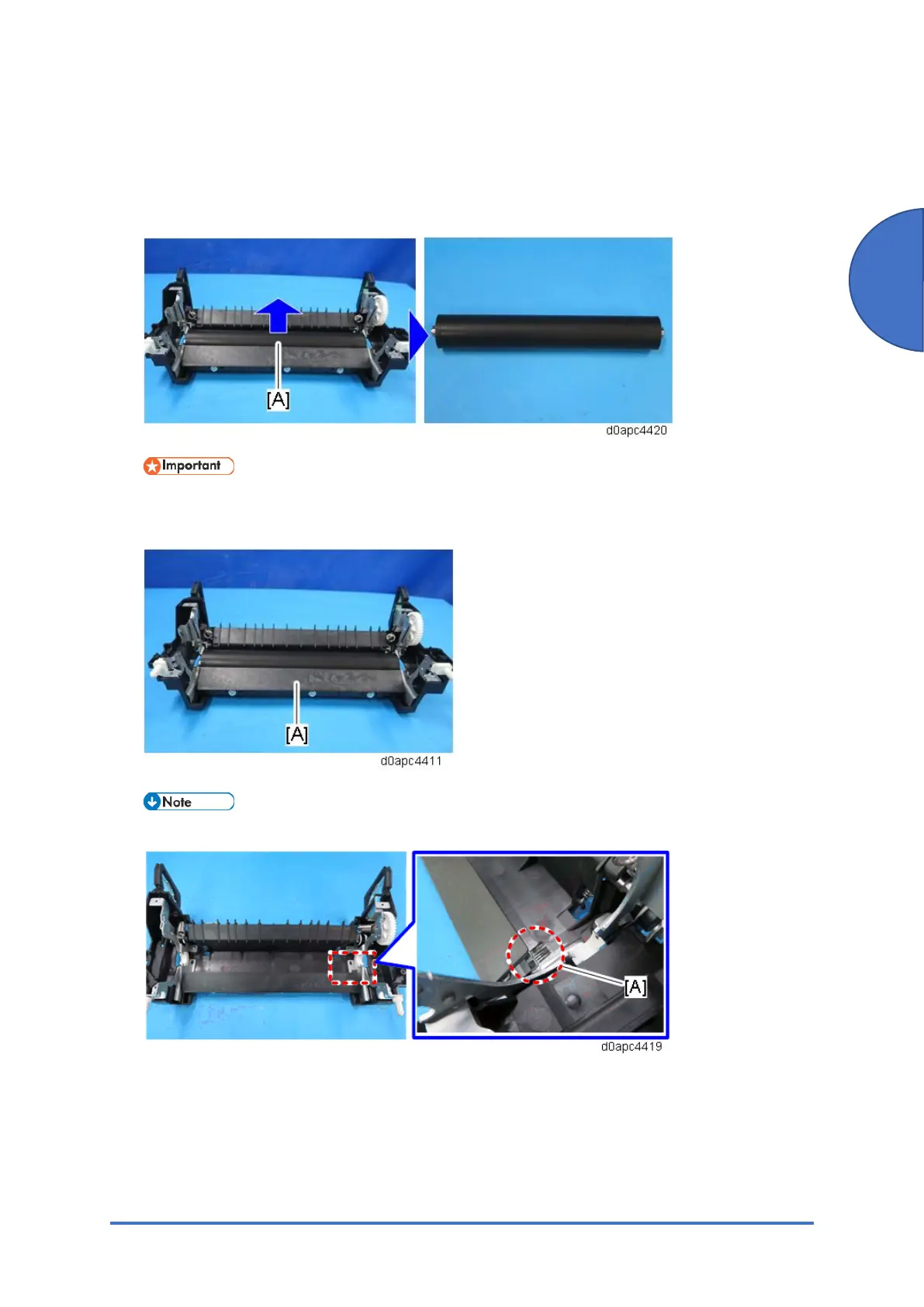

4.14.8 PRESSURE ROLLER
1. Remove the hot roller. (Hot Roller)
2. Remove the pressure roller [A].
Never disassemble entrance guide plate [A]. Disassembling the entrance guide plate could
cause the paper wrinkles.
The discharge brush [A] is attached while it is in contact with the pressure roller.
After reattaching the pressure roller, you need to make the discharge brush in the correct
position without removing the entrance guide plate. Rotate the pressure roller in the
backward direction, or scoop up the discharge brush with a flat-head screwdriver.
[A]: Correct position
[B]: Abnormal position
To Next Page
