4.3.4 LOCATIONS TO APPLY GREASE IN THE SCANNER UNIT
Inside Scanner Unit

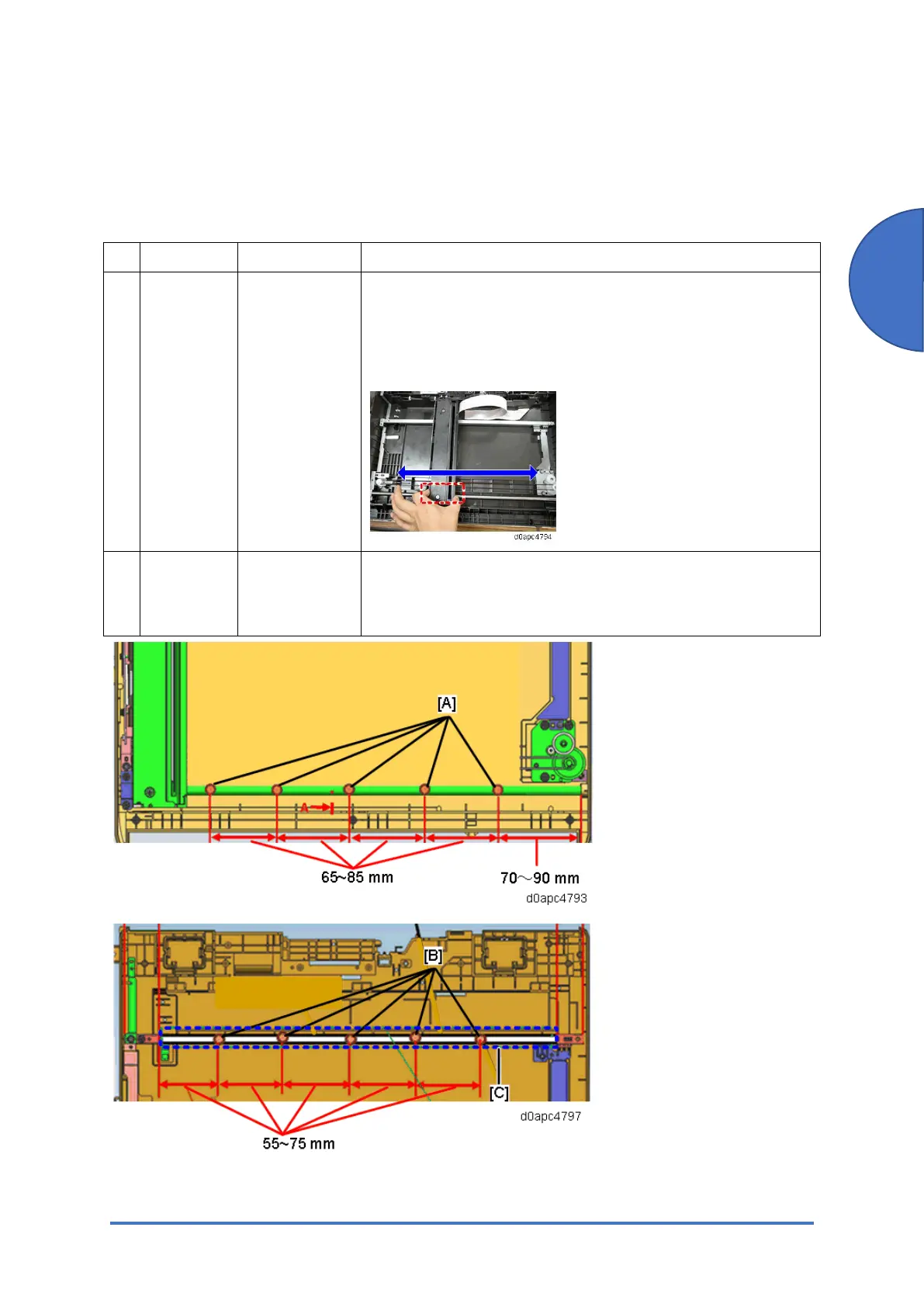

Apply grease (FLOIL G-348) at the locations shown below.
Location Part name Note
[A] Scanner
guide rod
GUIDE ROD:
SCANNER
5 places.
Hold the scanner carriage with the hand, and then move it
right and left three times from the end to the end of the guide
rod to spread the grease to the whole.
[B] Scanner
rail
RAIL:
SCANNER
5 places.
Spread the grease on the entire rail (range of [C]) with a
brush.
