Ricoh SAVIN D0AP - Registration Clutch (Cl5); Paper Feed Clutch (Cl6)

Drive Units
SM 4-127 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
Replacement
&
Adjustments
4.17.4 REGISTRATION CLUTCH (CL5)
1. MF model: Remove the SCB with the bracket. (SCB with the Controller Box (MF
Model))
Printer model: Remove the BCU with bracket. (BCU with the Bracket (Printer Model))

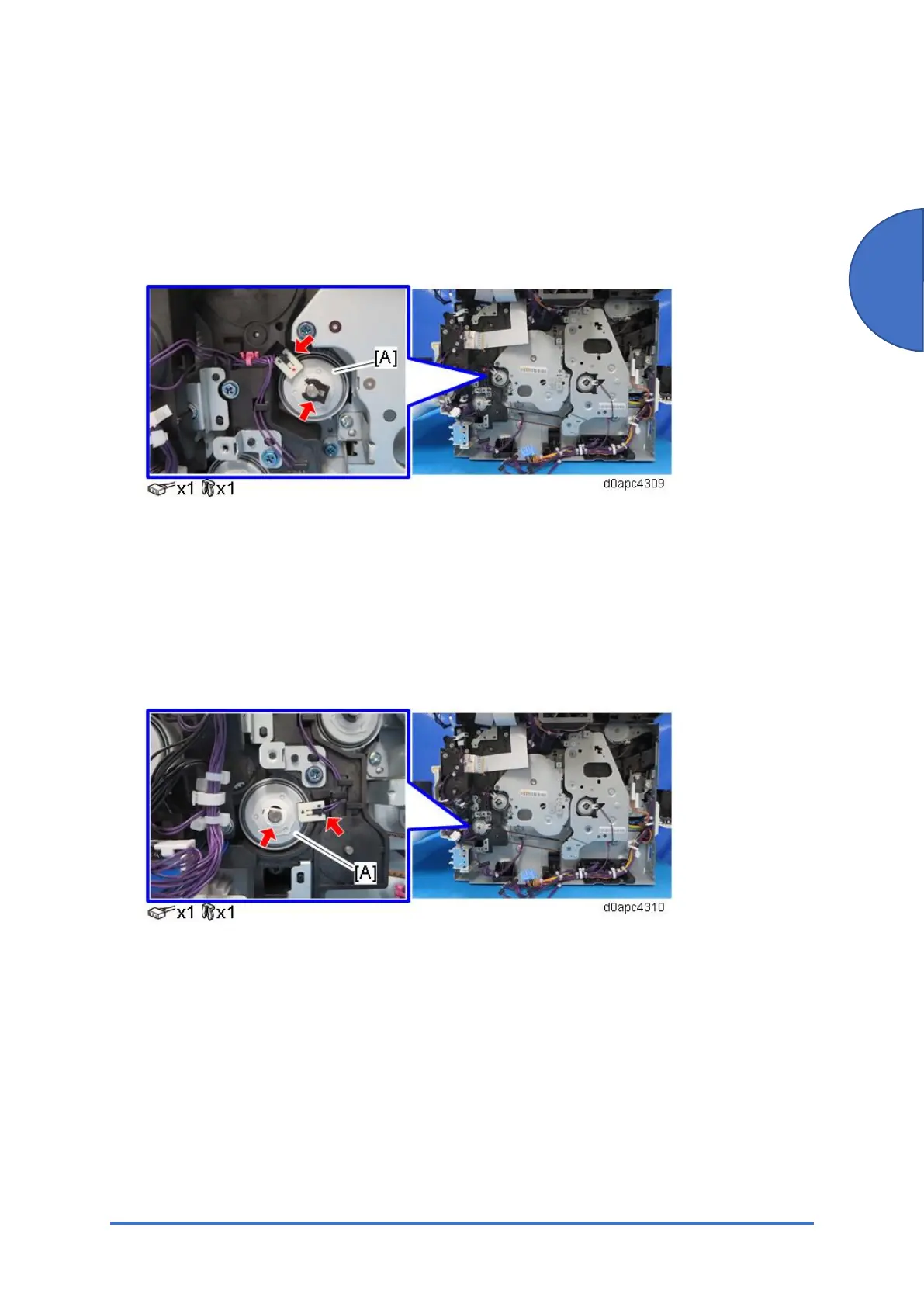

2. Remove the registration clutch (CL5) [A].
4.17.5 PAPER FEED CLUTCH (CL6)
1. MF model: Remove the SCB with the bracket. (SCB with the Controller Box (MF
Model))
Printer model: Remove the BCU with the bracket. (BCU with the Bracket (Printer
Model))
2. Remove the paper feed clutch (CL6) [A].
