Special Tools and Lubricants
SM 4-11 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
Replacement
&
Adjustments
Coating Amt. Maximum Minimum
[A]
[B]
[C]
[D]
Main Unit Side Plates

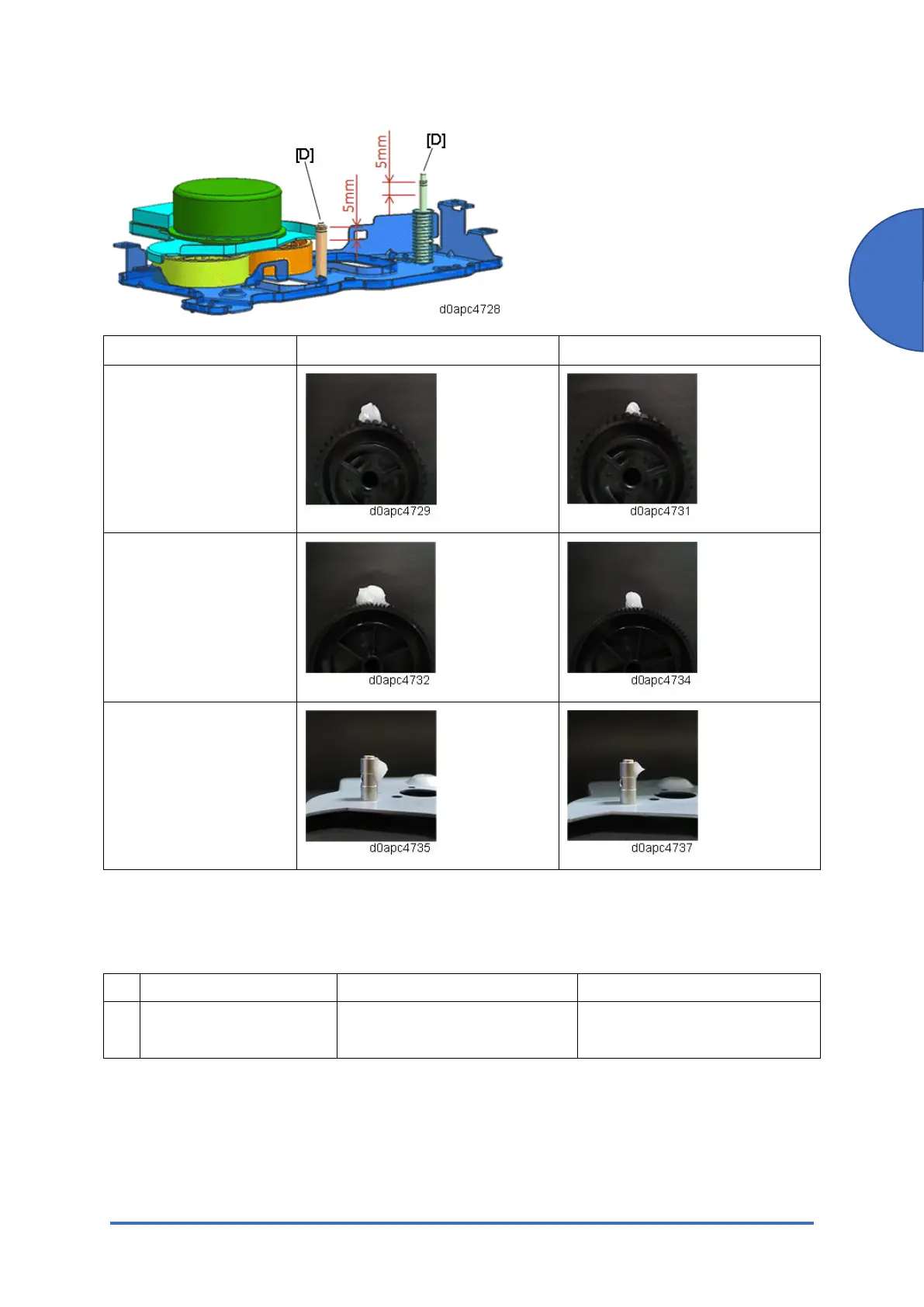

Apply silent grease to the main unit side plates at the locations shown below.
Location Part name Note
[E] Main unit side plate
peens
SIDE
PLATE:RIGHT:500:PEEN
4 places. Apply 5 mm to shaft
tip.
