Drive Units
SM 4-125 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
&

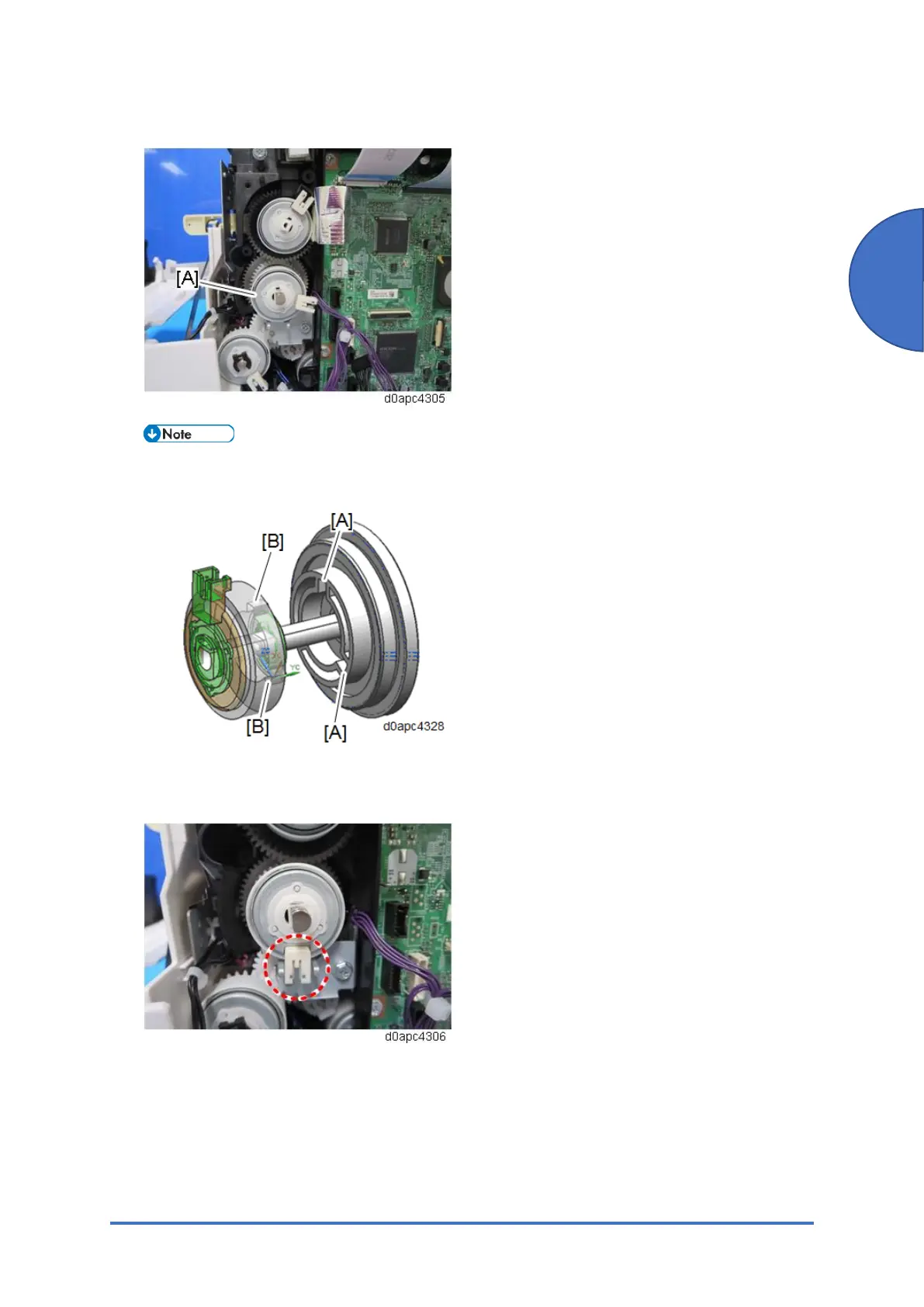

3. Remove the bypass feed clutch (CL4) [A].
When you install the bypass feed clutch (CL4), match the gear notches [A] (x3) with the
cogs [B] (x3). Also, the gear shaft is "D” cut so match it with the "D" cut hole of the clutch.
When attaching the bypass feed clutch (CL4), make sure that the connector of the clutch is
set over the holder as shown below.
