LED Optics

SM 4-85 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1

Replacement

Adjustments

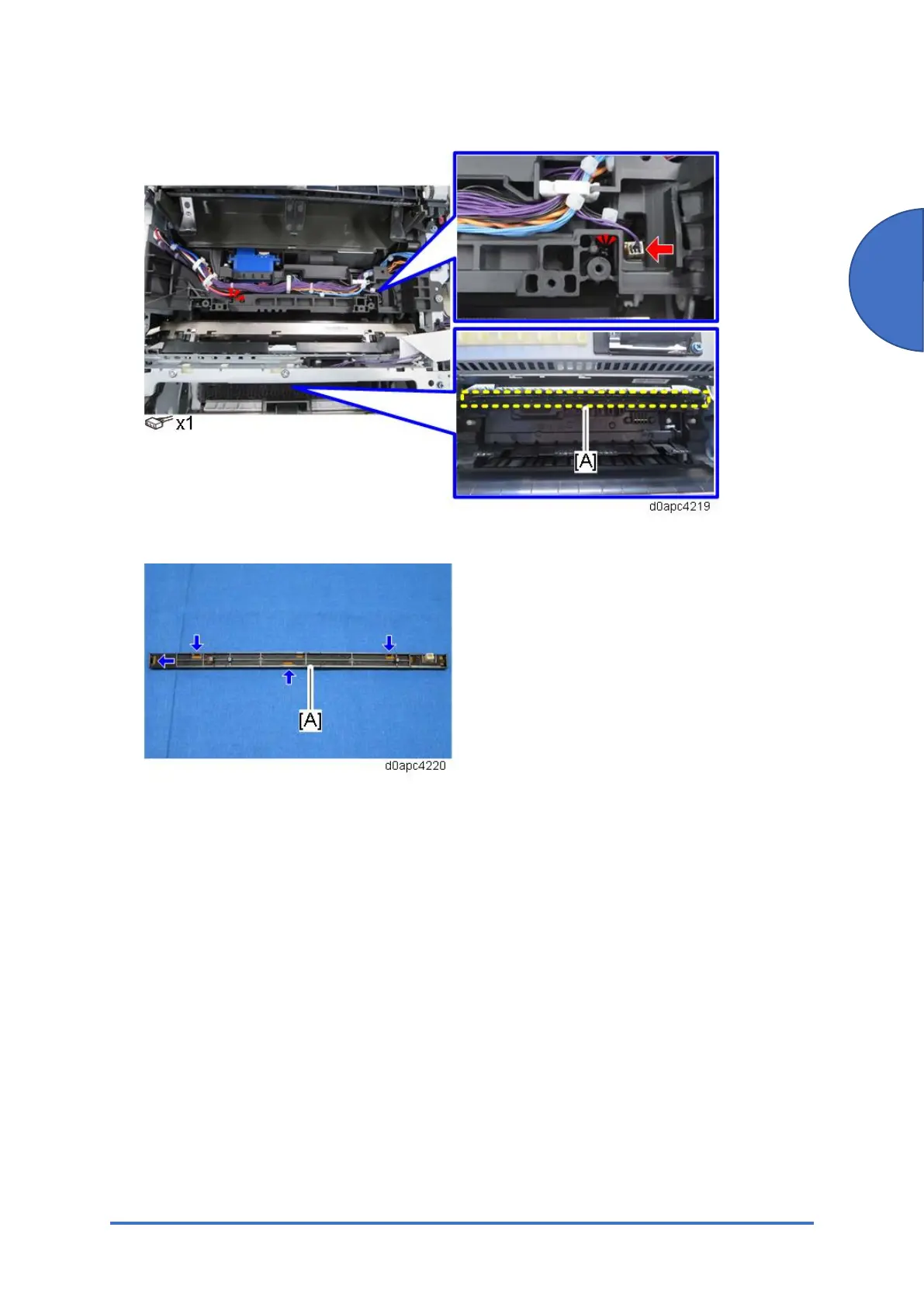

7. Release the two hooks to remove the quenching lamp with the case [A].

8. Release the four hooks to remove the quenching lamp from the case [A].
