Special Tools and Lubricants
SM 4-15 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
&
Pressure Release Support Shaft

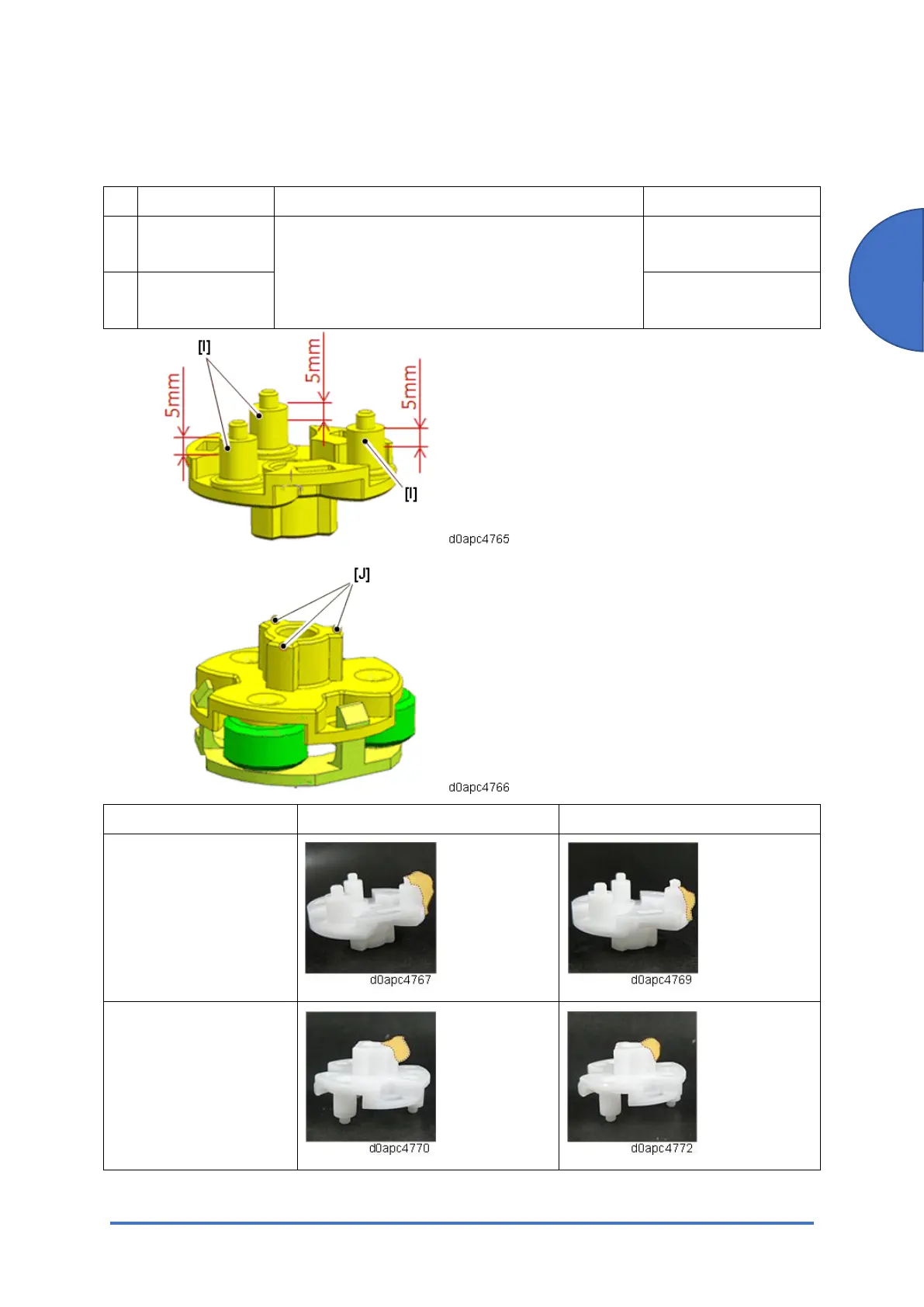

Apply silent grease to the pressure release support shaft at the locations shown below.
Location Part name Note
[I] Support shaft SUPPORT SHAFT:DRIVE:PRESSURE
RELEASE:PLANETARY
3 places. Apply 5 mm
to shaft tip.
[J] Support shaft
coupling
3 places.
Coating Amt. Maximum Minimum
[I]
[J]
* The amount of grease shown with the colored parts.
To Next Page
