Exterior Covers (Printer Model)
SM 4-27 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
Replacement
&
Adjustments

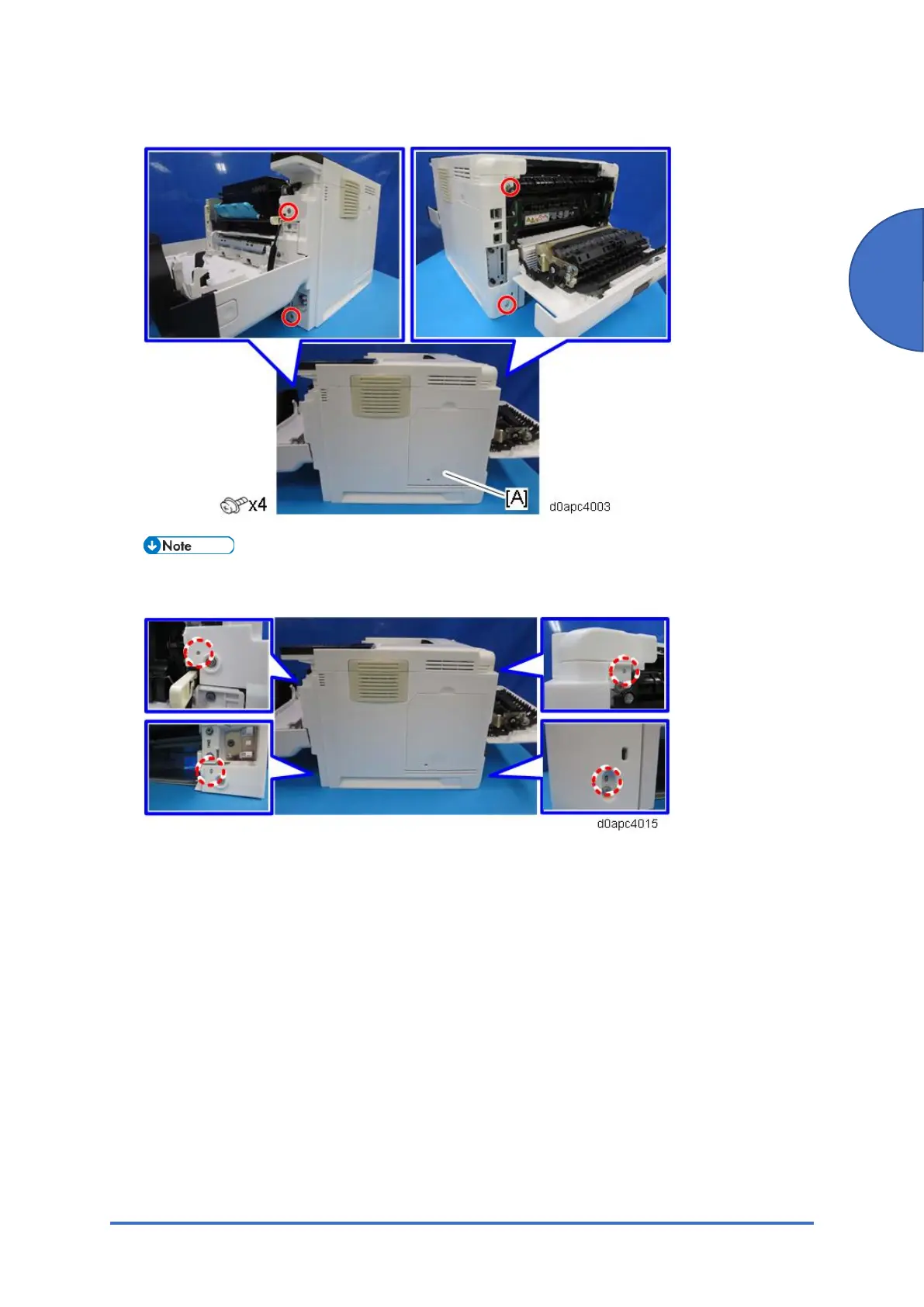

4. Remove the right cover [A].
The right cover is held in position by bosses on the frame of the main machine, so the right
cover must be disconnected from these bosses before removal.
