Exterior Covers (Printer Model)
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-34 SM

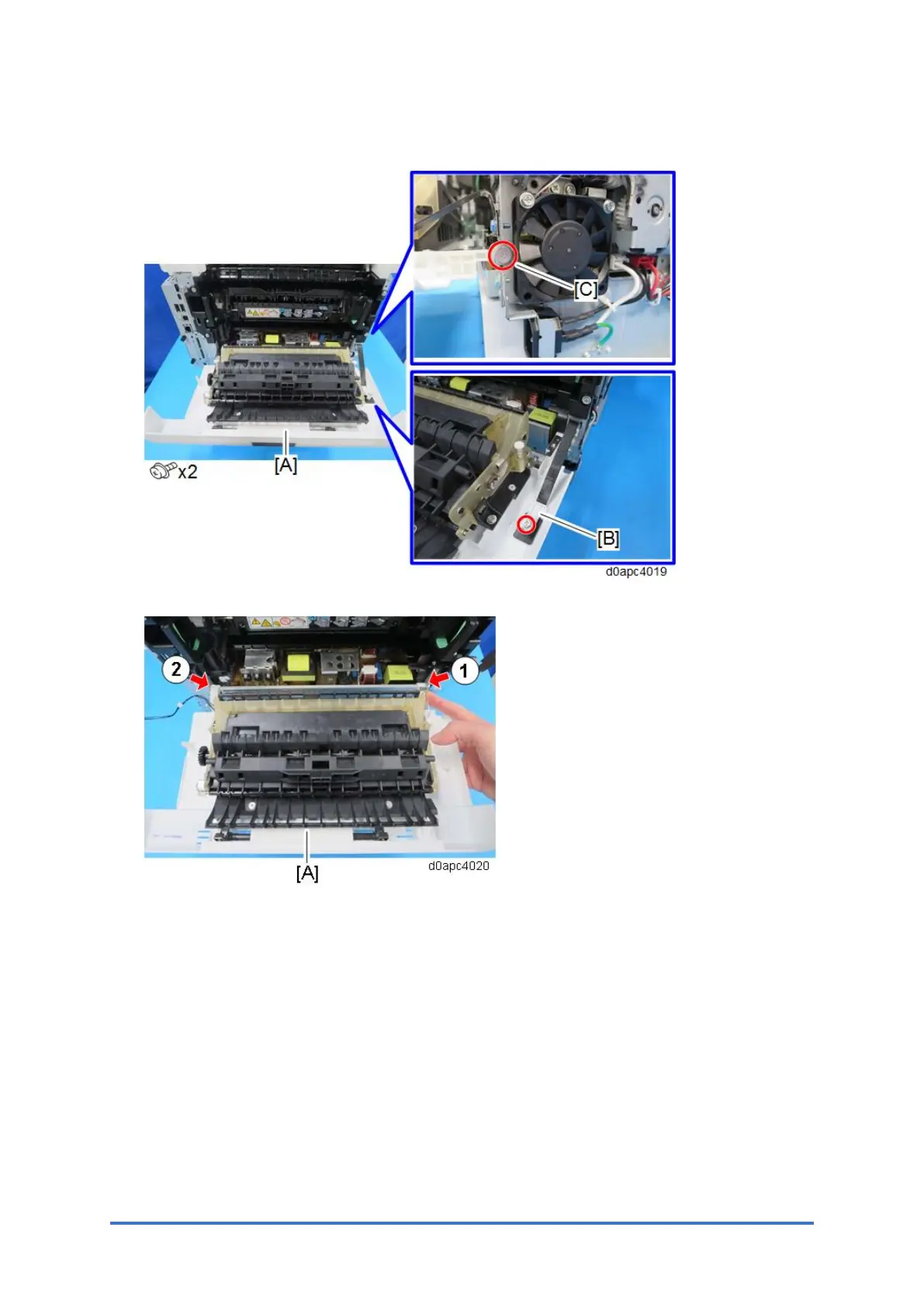

4. Remove the fixed part [B] for the belt of rear cover [A], and then remove the screw [C]
fastening the hinge.
5. Release both sides of the hinge to remove the rear cover [A]. Release the right hinge first.
