Ricoh SAVIN D0AP - Page 244

Exterior Covers (MF Model)
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-40 SM

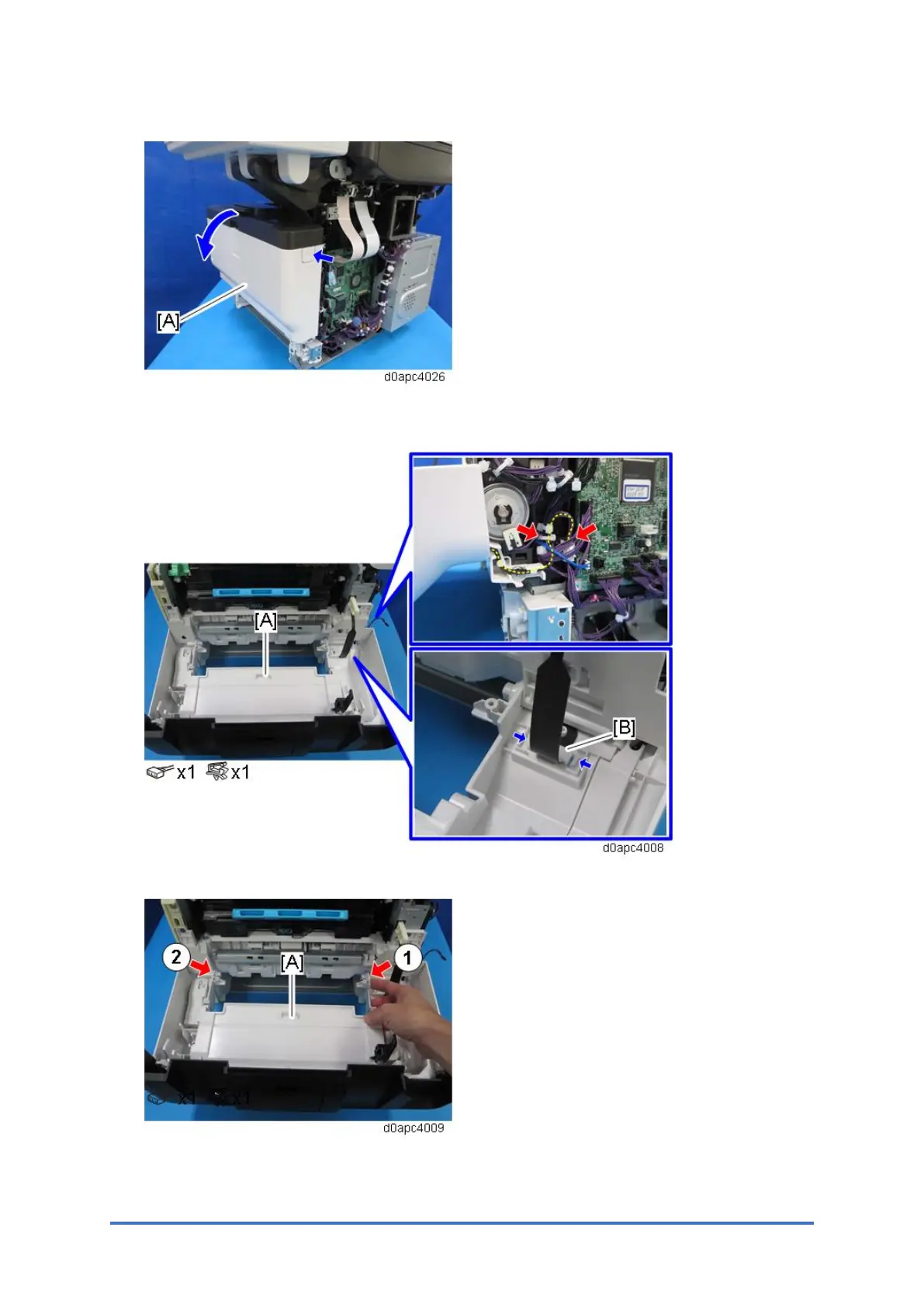

5. Open the front cover [A] by pressing the front cover button.
6. Disconnect the harness from the front cover [A] and remove the fastened part [B] of the
belt.
7. Release both hinges to remove the front cover [A]. Release the right hinge first.
