Scanner (MF Model Only)
SM 4-73 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
Replacement
&
Adjustments

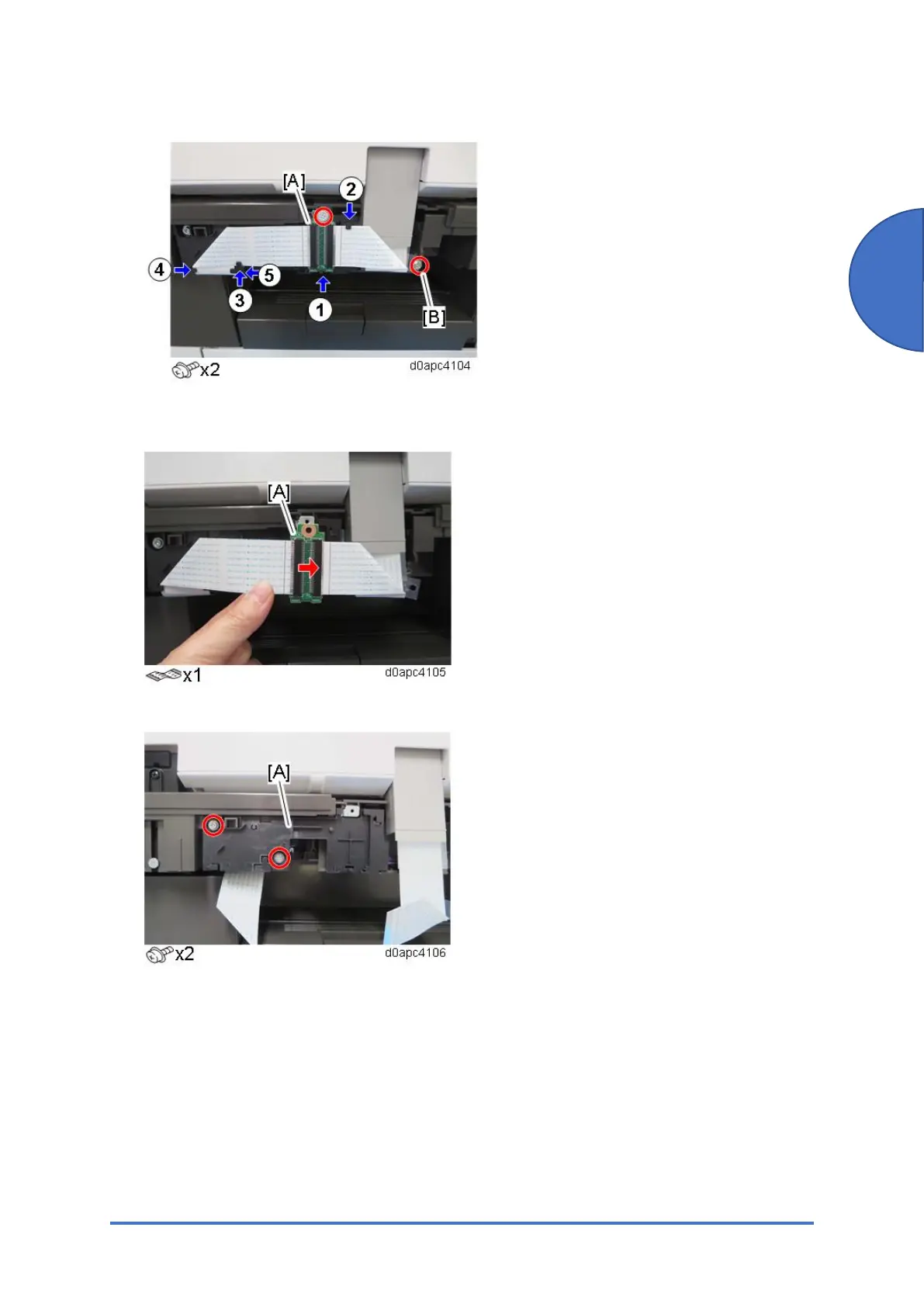

4. Release the five hooks in the order shown below to free the FFC.
5. Disconnect the right FFC from the relay board [A] while pulling it out straight. (There is no
locking mechanism.)
6. Remove the harness guide [A].
