Ricoh SAVIN D0AP - Page 280

Scanner (MF Model Only)
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-76 SM

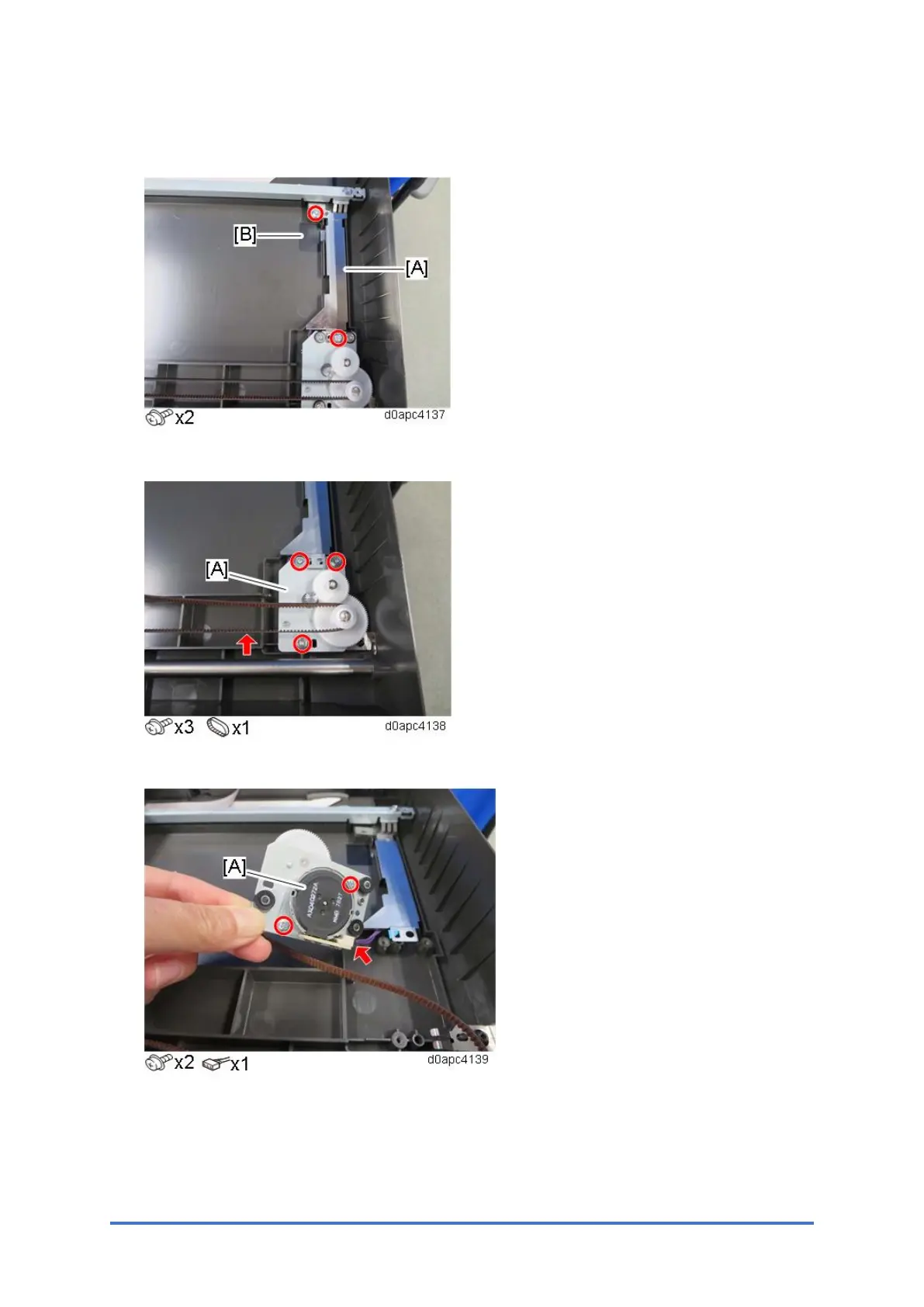

4. Remove screws of light shield [A], and then let it float free. The shield is attached with tape
[B] so do not remove it.
5. Remove the scanner motor (M5) with the bracket [A].
6. Remove the scanner motor (M5) [A].
