Scanner (MF Model Only)
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-78 SM

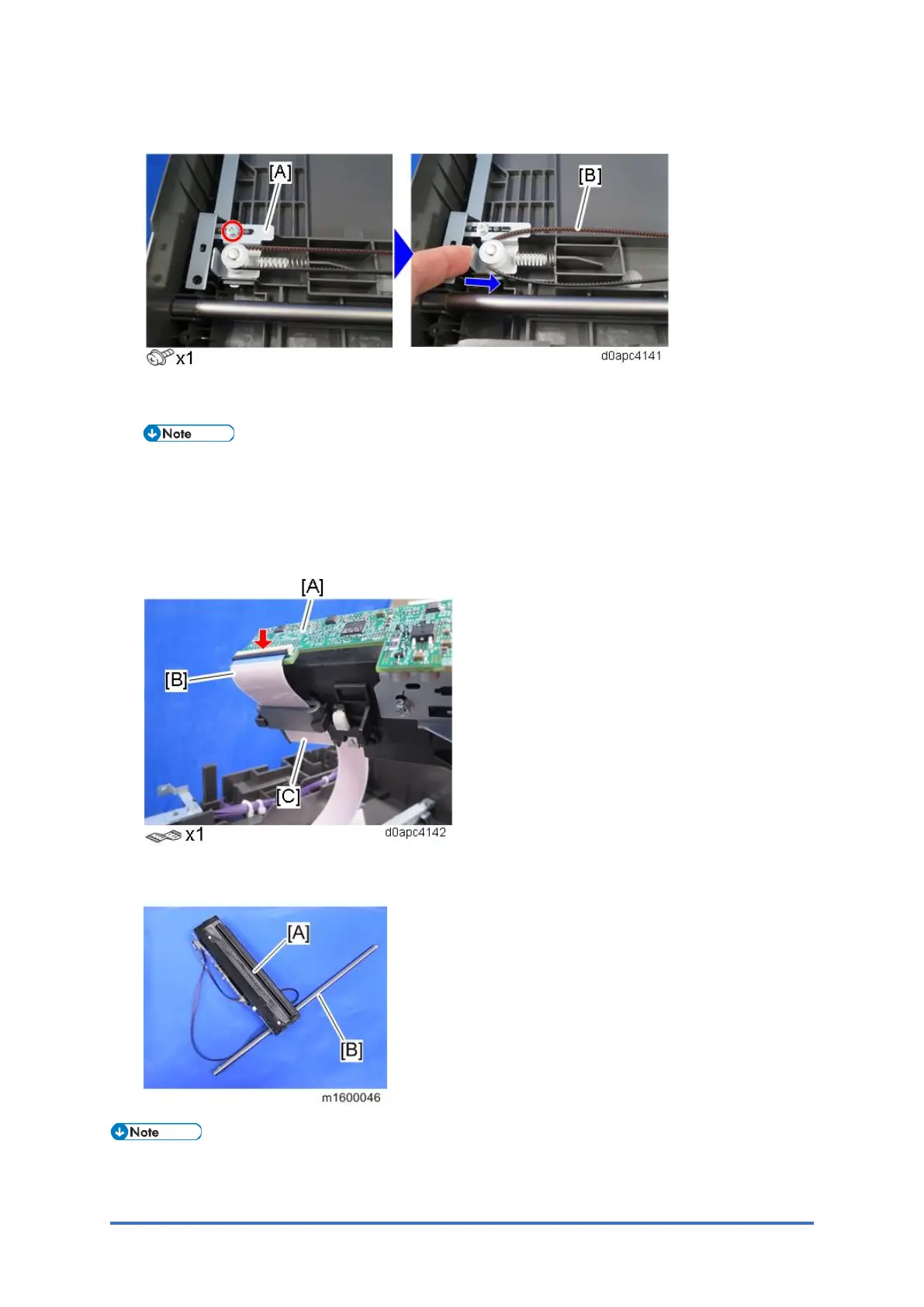

6. Slide the bracket [A] and then detach the carriage belt [B] from the pulley.
7. Disconnect the FFC [B] while lifting up the scanner carriage [A].
• The FFC is attached at [C] with double-sided tape. Do not try to strip the FFC off
with force.
• When reassembling, be sure to align the tape position where it was originally
attached.
8. Remove the shaft [B] from the carriage [A].
• Never wipe grease on the shaft of the scanner carriage.
To Next Page
