Fusing
SM 4-99 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
Replacement
&
Adjustments
top plate (marked yellow).

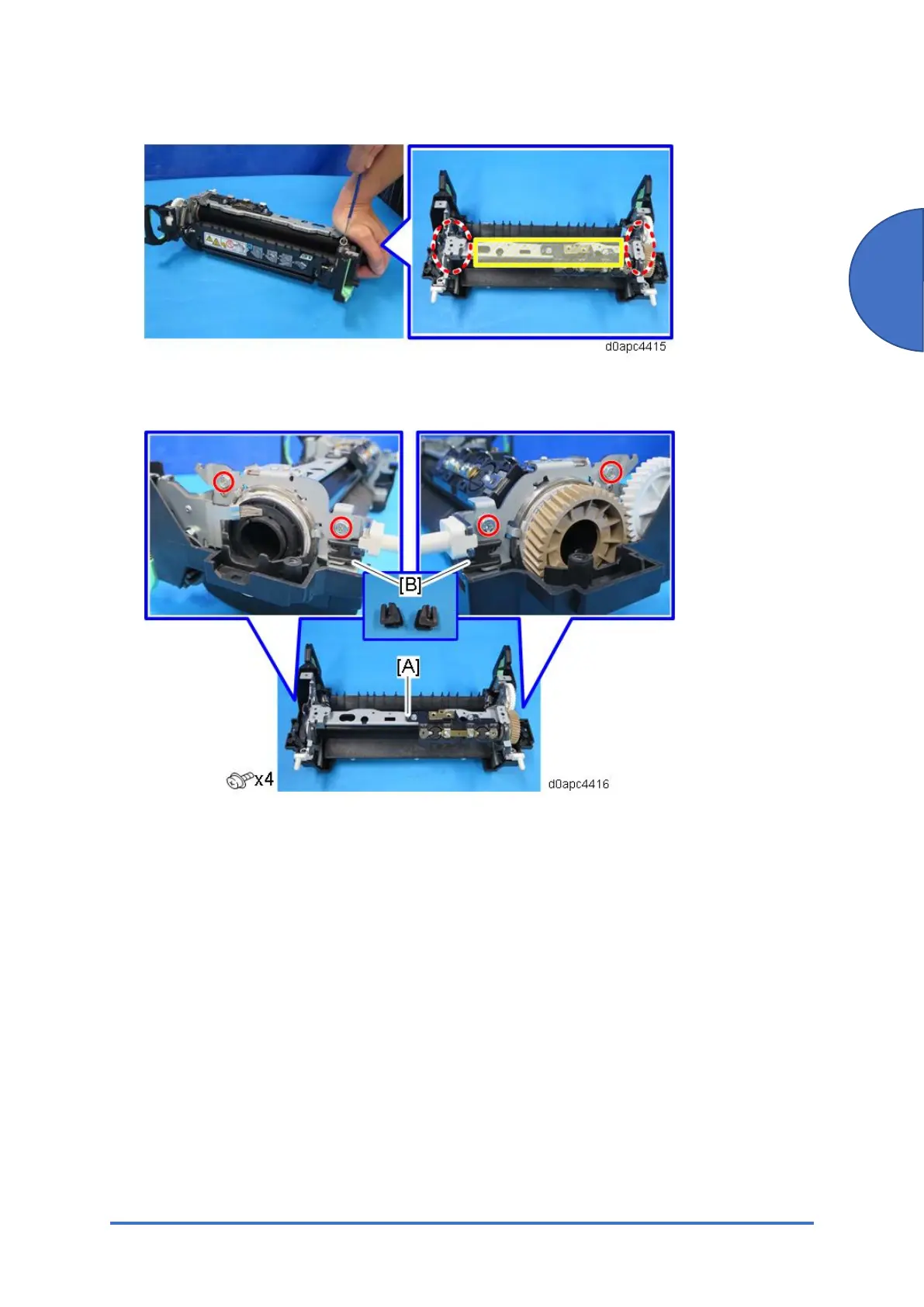

7. Remove the screws of the bracket [A] on both sides, and then remove the harness guide
[B].
8. Remove the bracket [A].
Release the boss cap (1), raise bracket [A], and then release the boss cap (2).
