Ricoh SAVIN D0AP - Page 368

Electrical Components
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 4-164 SM

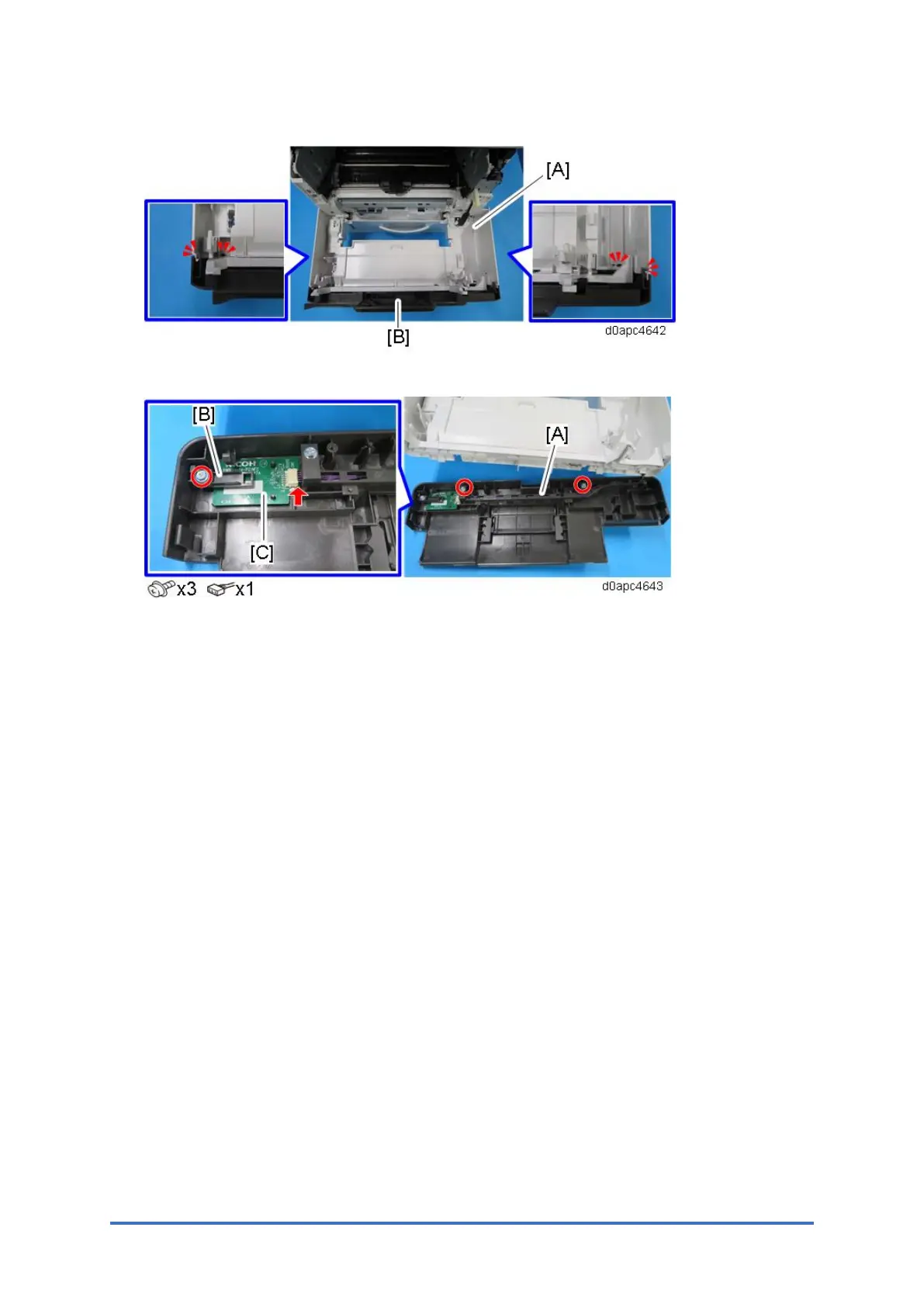

6. Release the four hooks to remove the front upper cover [B].
7. Remove the harness guide [A] and cover [B], and then remove the NFC board [C].
