Main Machine Installation (IM 350F/350/430F)
SM 2-15 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1
1BInstallation

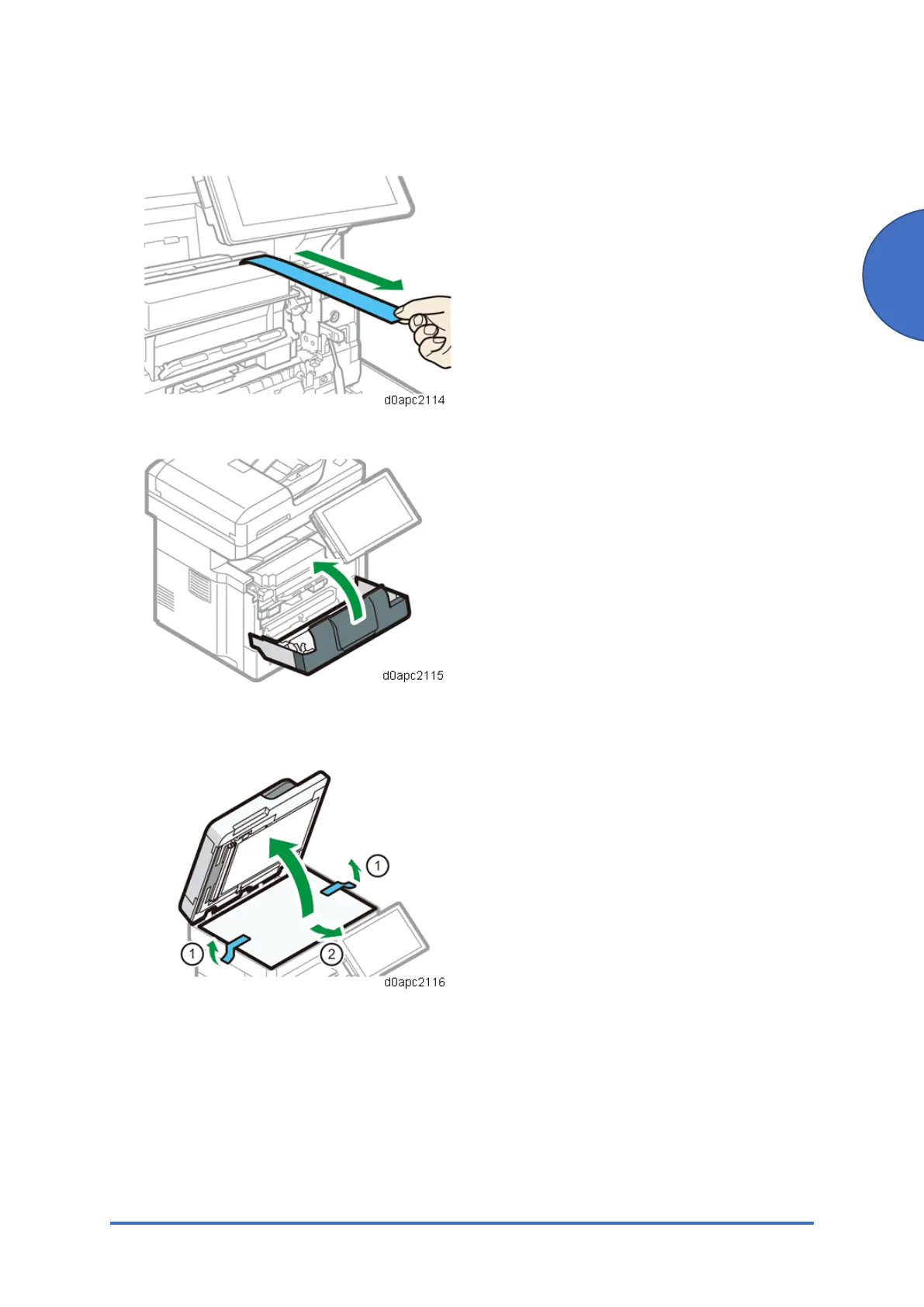

5. Pull out the tape straight towards you. Toner adheres to the edge of the tape. Be careful not
to touch it.
6. Close the front cover.
7. Lift the exposure glass cover to remove the inner adhesive tapes (1) and the protective
sheet (2).
