Option (Offline Stapler Type M34)
SM 7-101 D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1

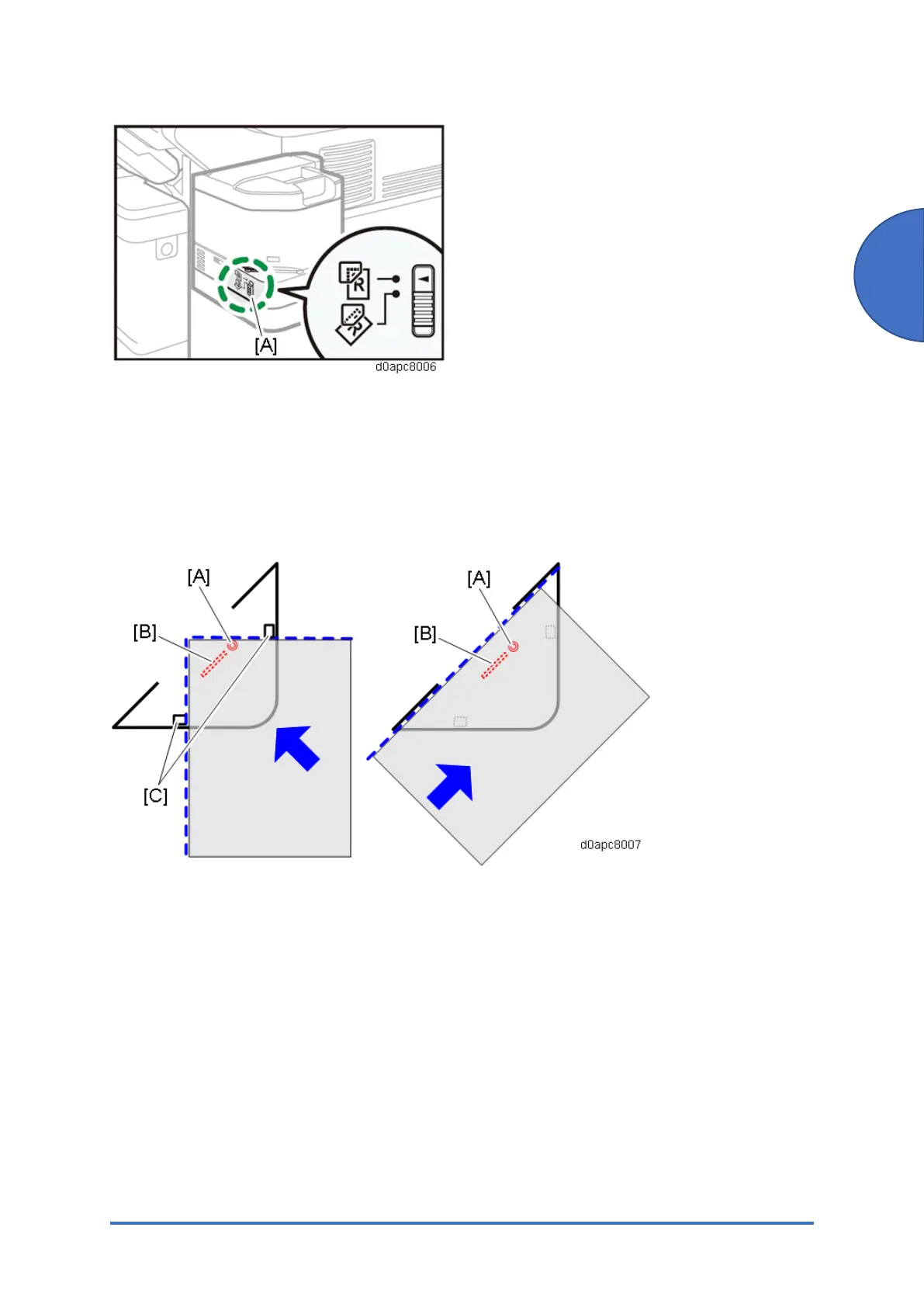

• Raise the slide switch to raise the stoppers, and when the sheets are inserted along the
stoppers, the stack can be stapled at the corner with the staple diagonal to the edges of the
sheets.
• Lower the slide switch to lower the stoppers, and when the sheets are inserted from the
front along the guide inside the stapler, the stack can be stapled in the margin with the
staple parallel to the edges of the sheet.
[A] Paper sensor exposure position
[B] Staple position
[C] Stoppers
