Connection
7
Manual SD6

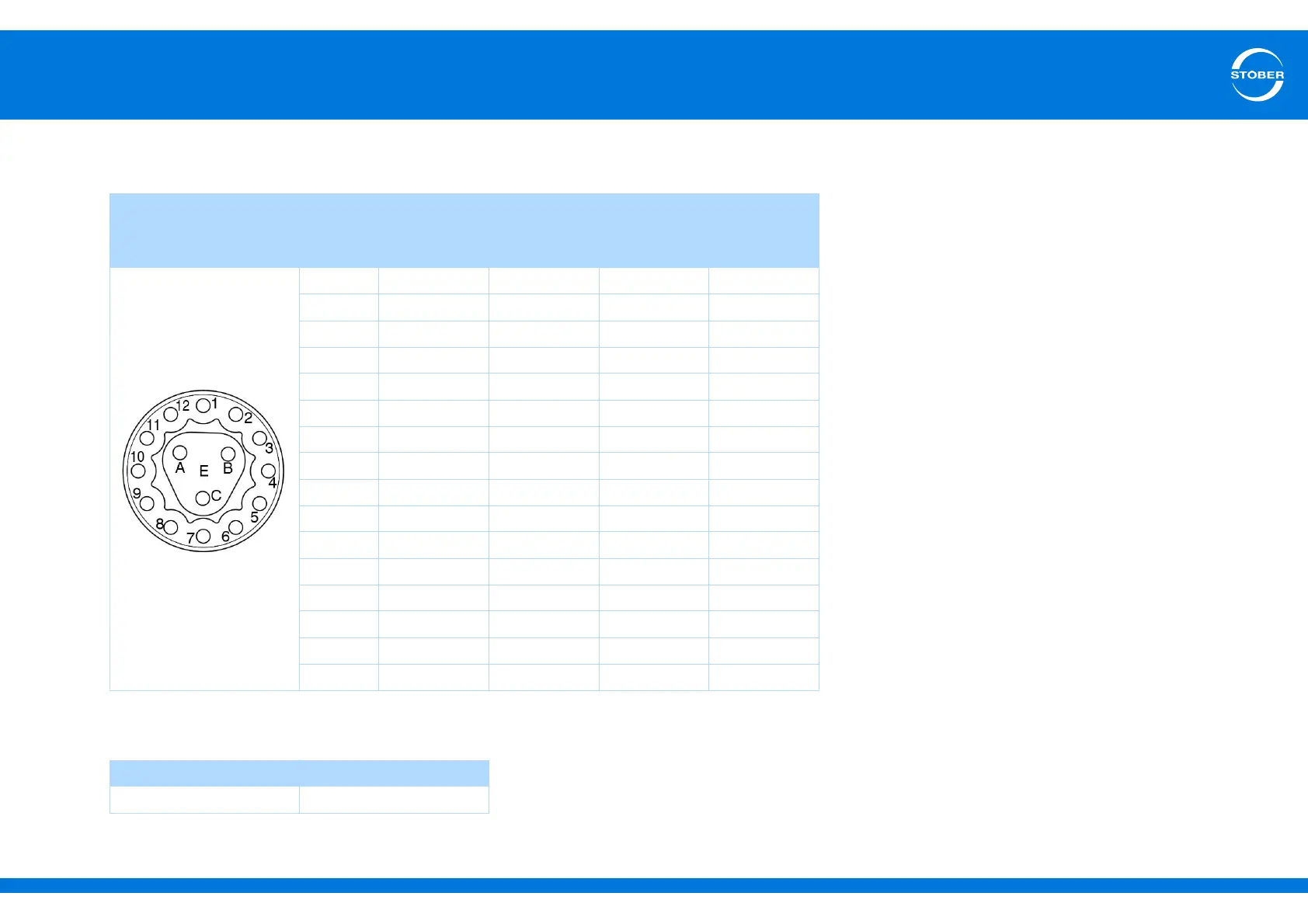

Encoder cable – plug connector con.15
Motor Signal Wire colors D-sub (X140)
Angle flange socket Pin Motor-
internal
Encoder Pin
1 Sense+ BU GNRD 12
2 Sense- WH GNBK 10
3U
2
BNGN BNRD 4
4CLK+ VT WHBK 8
5CLK- YE WHYE 15
6GNDWHGNBNBU 2
7 B+ (Sin+) BUBK RD 9
8 B- (Sin-) RDBK OG 1
9 DATA+ GY GY 5
10 A+ (Cos+) GNBK GN 11
11 A- (Cos-) YEBK YE 3
12 DATA- PK BU 13
A————
B————
C————
Housing Shield
Dimensions – connector size con.15
Length [mm] Diameter [mm]
42 18.7
