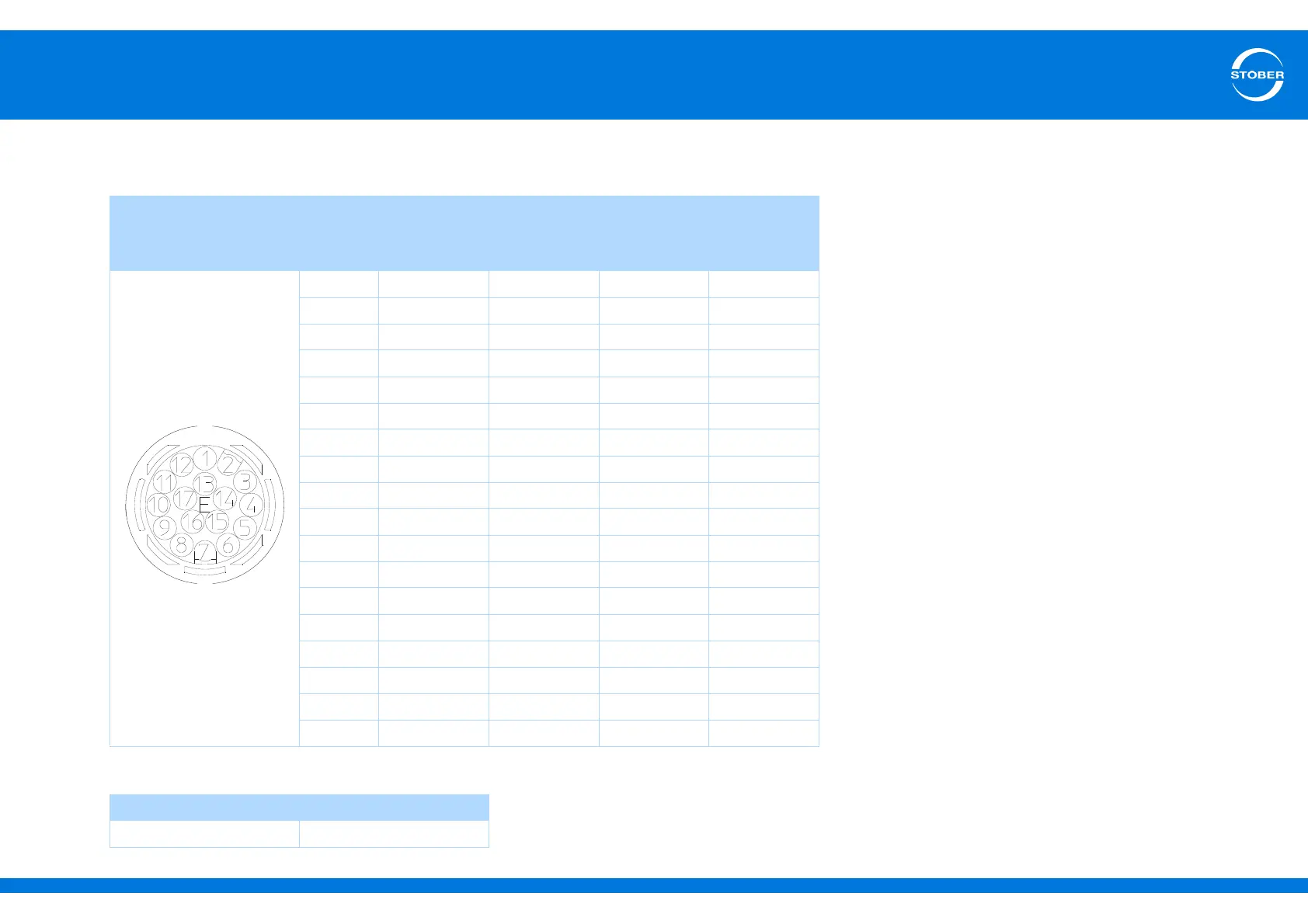

Encoder cable – plug connector con.17
Motor Signal Wire colors D-sub (X140)
Angle flange socket Pin Motor-
internal
Encoder Pin
1 Sense+ BU GNRD 12
2————
3————
4 Sense- WH GNBK 10
5————
6————
7U
2
BNGN BNRD 4
8CLK+ VT WHBK 8
9CLK- YE WHYE 15
10 GND WHGN BNBU 2
11————
12 B+ (Sin+) BUBK RD 9
13 B- (Sin-) RDBK OG 1
14 DATA+ GY GY 5
15 A+ (Cos+) GNBK GN 11
16 A- (Cos-) YEBK YE 3
17 DATA- PK BU 13
Housing Shield
Dimensions – connector size con.17
Length [mm] Diameter [mm]
56 22
